I caught a mention of this project by Pete Warden on Four Short Links today. If his name sounds familiar, he’s the creator of the DSTK, an O’Reilly author, and now works at Google. A decidedly clever and decent chap.

The project goal is noble: crowdsource and make a repository of open speech data for researchers to make a better world. Said sourcing is done by asking folks to record themselves saying “Yes”, “No” and other short words.

As I meandered over the blog post I looked in horror on the URL for the application that did the recording: https://open-speech-commands.appspot.com/.

Why would the goal of the project combined with that URL give pause? Read on!

You’ve Got Scams!

Picking up the phone and saying something as simple as ‘Yes’ has been a major scam this year. By recording your voice, attackers can replay it on phone prompts and because it’s your voice it makes it harder to refute the evidence and can foil recognition systems that look for your actual voice.

As the chart above shows, the Better Business Bureau has logged over 5,000 of these scams this year (searching for ‘phishing’ and ‘yes’). You can play with the data (a bit — the package needs work) in R with scamtracker.

Now, these are “analog” attacks (i.e. a human spends time socially engineering a human). Bookmark this as you peruse section 2.

Integrity Challenges in 2017

I “trust” Pete’s intentions, but I sure don’t trust open-speech-commands.appspot.com (and, you shouldn’t either). Why? Go visit https://totally-harmless-app.appspot.com. It’s a Google App Engine app I made for this post. Anyone can make an appspot app and the https is meaningless as far as integrity & authenticity goes since I’m running on google’s infrastructure but I’m not google.

You can’t really trust most SSL/TLS sessions as far as site integrity goes anyway. Let’s Encrypt put the final nail in the coffin with their Certs Gone Wild! initiative. With super-recent browser updates you can almost trust your eyes again when it comes to URLs, but you should be very wary of entering your info — especially uploading voice, prints or eye/face images — into any input box on any site if you aren’t 100% sure it’s a legit site that you trust.

Tracking the Trackers

If you don’t know that you’re being tracked 100% of the time on the internet then you really need to read up on the modern internet.

In many cases your IP address can directly identify you. In most cases your device & browser profile — which most commercial sites log — can directly identify you. So, just visiting a web site means that it’s highly likely that web site can know that you are both not a dog and are in fact you.

Still Waiting for the “So, What?”

Many states and municipalities have engaged in awareness campaigns to warn citizens about the “Say ‘Yes'” scam. Asking someone to record themselves saying ‘Yes’ into a random web site pretty much negates that advice.

Folks like me regularly warn about trust on the internet. I could have cloned the functionality of the original site to open-speech-commmands.appspot.com. Did you even catch the 3rd ‘m’ there? Even without that, it’s an appspot.com domain. Anyone can set one up.

Even if the site doesn’t ask for your name or other info and just asks for your ‘Yes’, it can know who you are. In fact, when you’re enabling the microphone to do the recording, it could even take a picture of you if it wanted to (and you’d likely not know or not object since it’s for SCIENCE!).

So, in the worst case scenario a malicious entity could be asking you for your ‘Yes’, tying it right to you and then executing the post-scam attacks that were being performed in the analog version.

But, go so far as to assume this is a legit site with good intentions. Do you really know what’s being logged when you commit your voice info? If the data was mishandled, it would be just as easy to tie the voice files back to you (assuming a certain level of data logging).

The “so what” is not really a warning to users but a message to researchers: You need to threat model your experiments and research initiatives, especially when innocent end users are potentially being put at risk. Data is the new gold, diamonds and other precious bits that attackers are after. You may think you’re not putting folks at risk and aren’t even a hacker target, but how you design data gathering can reinforce good or bad behaviour on the part of users. It can solidify solid security messages or tear them down. And, you and your data may be more of a target than you really know.

Reach out to interdisciplinary colleagues to help threat model your data collection, storage and dissemination methods to ensure you aren’t putting yourself or others at risk.

FIN

Pete did the right thing:

and, I’m sure the site will be on a “proper” domain soon. When it is, I’ll be one of the first in line to help make a much-needed open data set for research purposes.

I listen to @NPR throughout the day (on most days) and a story on Ohmconnect piqued my interest (it aired 5 days prior to this post). The TLDR on Ohmconnect is that it ostensibly helps you save energy by making you more aware of consumption and can be enabled to control various bits of IoT you have in your abode to curtail wanton power usage.

OK. So…?

Such a service requires access to (possibly many) accounts and devices to facilitate said awareness and control. Now, it’s 2017 and there’s this thing called OAuth that makes giving such access quite a bit safer than it was in the “old days” when you pretty much had to give your main username and password out to “connect” things.

It — apparently — is not 2017 wherever Ohmconnect developers reside since they ask for your credentials to every service and integration you want enabled. Don’t believe me? Take a look:

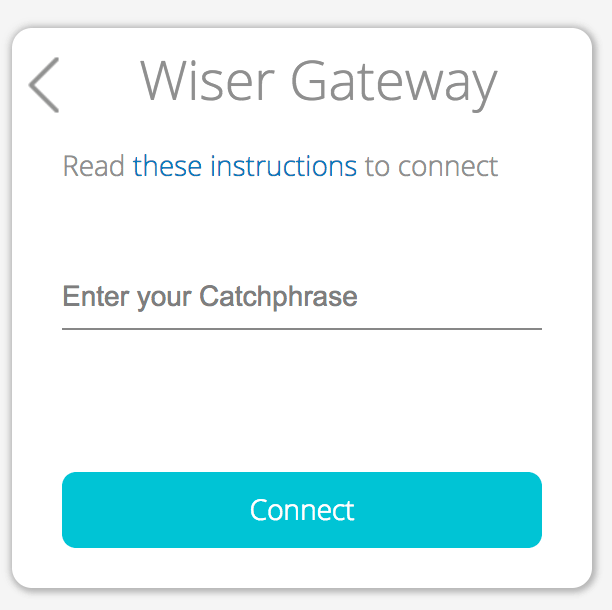

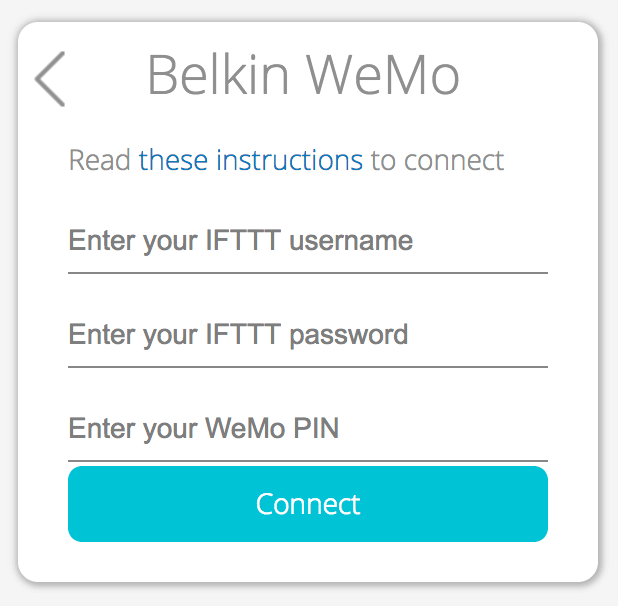

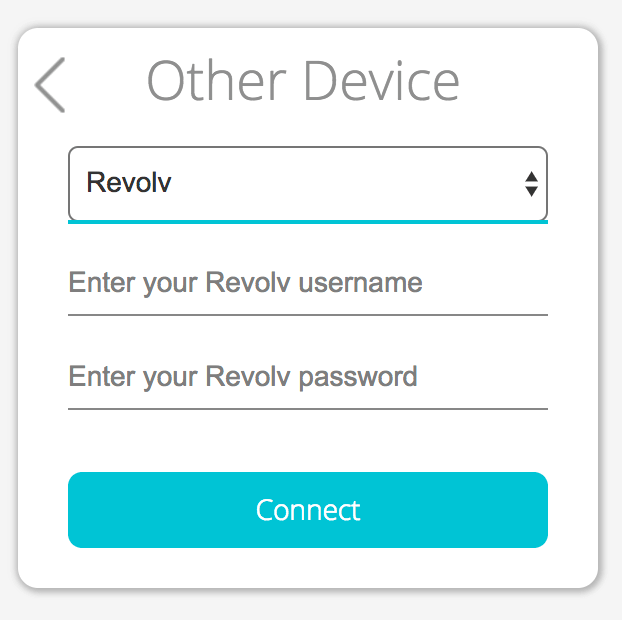

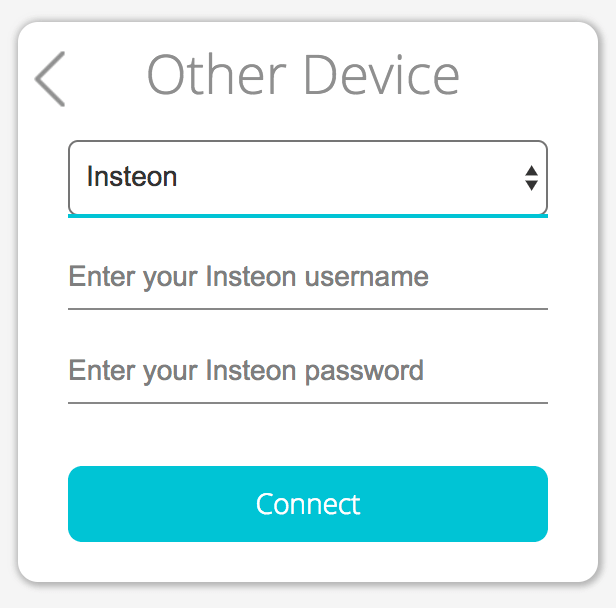

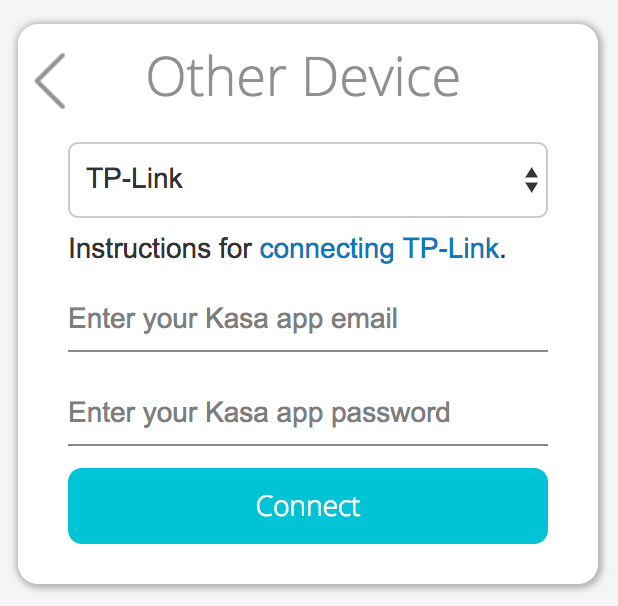

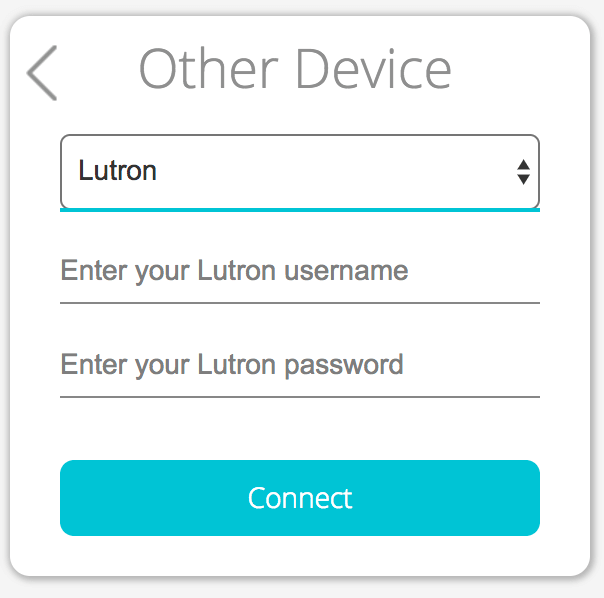

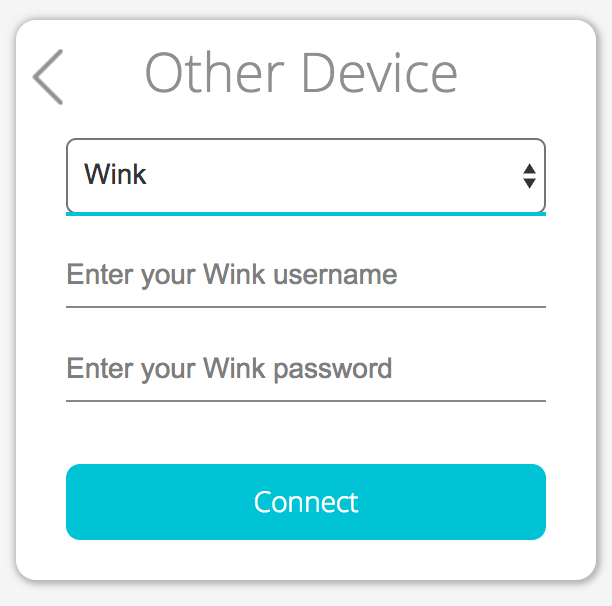

That’s just from (mostly) the non-thermostat integrations. They ask for your credentials for all services. That’s insane.

I can understand that they may need power company credentials since such industries are usually far behind the curve when it comes to internet-enablement. That doesn’t mean it’s A Good Thing to provide said credentials, but it’s a necessary evil when a service provider has no support for OAuth and you really want to use some integration to their portal.

Virtually all of the possible Ohmconnect-supported service integrations have OAuth support. Here’s a list of the ones that do/dont:

OAuth Support:

Appears to have no OAuth Support:

  • Lennox
  • Lutron
  • Radio Thermostat (Filtrete)
  • Revolv
  • WeMo

NOTE: The ones labeled as having no OAuth support may have either commercial OAuth support or hidden OAuth support. I’ll gladly modify the post if you leave a comment with official documentation showing they have OAuth support.

On the plus side, Ohmconnect developers now have some links they can follow to learn about OAuth and fix their woefully insecure service.

Why Are Credentials Bad?

Ohmconnect has to store your credentials for other services either in the clear or in some way that’s easy for them to reverse/decode. That means when criminals breach their servers (yes, when) they’ll get access to all the credentials you’ve entered on all those sites. Even if you’re one of the few who don’t use the same password everywhere and manage credentials in an app like @1Password it’s still both a pain to change them and you’ll be at risk during whatever the time-period is between breach and detection (which can be a very long time).

In the highly unlikely event they are doing the OAuth in the background for you (a complete violation of OAuth principles) they still take and process (and, likely store) your credentials for that transaction.

Either way, the request for and use of credentials is either (at best) a naive attempt at simplifying the user experience or (at worse) a brazen disregard for accepted norms for modern user-service integration for non-obvious reasons.

NOTE: I say “when” above as this would be a lovely target of choice for thieves given the types of data it can collect and the demographic that’s likely to use it.

What Can You Do?

Well, if you’re a current Ohmconnect you can cancel your account and change all the credentials for the services you connected. Yes, I’m being serious. If you really like their service, contact customer support and provide the above links and demand that they use OAuth instead.

You should absolutely not connect the devices/services that are on the “Appears to have no OAuth Support” list above to any third-party service if that service needs your credentials to make the connection. There’s no excuse for a cloud-based service to not support OAuth and there are plenty of choices for home/device control. Pick another brand and use it instead.

If you aren’t an Ohmconnect user, I would not sign up until they support OAuth. By defaulting to the “easy” use of username & password they are showing they really don’t take your security & privacy seriously and that means they really don’t deserve your business.

FIN

It is my firm belief that @NPR should either remove the story or issue guidance along with it in text and in audio form. They showcased this company and have all but directly encouraged listeners to use it. Such recommendations should come after much more research, especially security-focused research (they can ask for help with that from many orgs that will give them good advice for free).

In case you’re wondering, I did poke them about this on Twitter immediately after the NPR story and my initial signup attempt but they ignored said poke.

I’m also not providing any links to them given their lax security practices.

I’ve been threatening to do a series on “data science community security” for a while and had cause to issue this inaugural post today. It all started with this:

Let me begin with the following: @henrikbengtsson is an awesome member of the community. He makes great things and I trust his code and intentions. This post is not about him, it’s about raising awareness regarding security in the data science community.

I can totally see why folks would like Henrik’s tool. Package dependency management — including installing packages — is not the most beloved of R tasks, especially for new R users or those who prefer performing their respective science or statistical work vs delve deep into the innards of R. The suggestion to use:

source('http://callr.org/install#knitr')

no doubt came from a realization of how cumbersome it can be to deal with said dependency management. You can even ostensibly see what the script does since Henrik provides a link to it right on the page.

So, why the call to not use it?

For starters, if you do want to use this approach, grab his script and make a local copy of it. Read it. Try to grok what it does. Then, use it locally. It will likely be a time-/effort-saver for many R users.

My call was to not source it from the internet.

Why? To answer that I need to talk about trust.

hrbrmstr’s Hierarchy of Package Trust

When you install a package on your system you’re bringing someone else’s code into your personal work space. When you try to use said code with a library() call, R has a few mechanisms to run code on package startup. So, when you just install and load a package you’re executing real code in the context of your local user. Some of that code may be interpreted R code. Some may be calling compiled code. Some of it may be trying to execute binaries (apps) that are already on your system.

Stop and think about that for a second.

If you saw a USB stick outside your office with a label “Cool/Useful R Package” would you insert it into your system and install the package? (Please tell me you answered “No!” :-)

With that in mind, I have a personal “HieraRchy of Package Trust” that I try to stick by:

Tier 1

This should be a pretty obvious one, but if it’s my own code/server or my org’s code/server there’s inherent trust.

Tier 2

When you type install.pacakges() and rely on a known CRAN mirror, MRAN server or Bioconductor download using https you’re getting quite a bit in the exchange.

CRAN GuaRdians at least took some time to review the package. They won’t catch every possible potentially malicious bit and the efficacy of evaluating statistical outcomes is also left to the package user. What you’re getting — at least from the main cran.r-project.org repo and RStudio’s repos — are reviewed packages served from decently secured systems run by organizations with good intentions. Your trust in other mirror servers is up to you but there are no guarantees of security on them. I’ve evaluated the main CRAN and RStudio setups (remotely) and am comfortable with them but I also use my own personal, internal CRAN mirror for many reasons, including security.

Revolution-cum-Microsoft MRAN is also pretty trustworthy, especially since Microsoft has quite a bit to lose if there are security issues there.

Bioconductor also has solid package management practices in place, but I don’t use that ecosystem much (at all, really) so can’t speak too much more about it except that I’m comfortable enough with it to put it with the others at that level.

Tier 3

If I’m part of a known R cabal in private collaboration, I also trust it, but it’s still raw source and I have to scan through code to ensure the efficacy of it, so it’s a bit further down the list.

Tier 4

If I know the contributors to a public source repo, I’ll also consider trusting it, but I will still need to read through the source and doubly-so if there is compiled code involved.

Tiers 5 & 6

If the repo source is a new/out-of-the-blue contributor to the R community or hosted personally, it will be relegated to the “check back later” task list and definitely not installed without a thorough reading of the source.

NOTE

There are caveats to the list above — like CRAN R packages that download pre-compiled Windows libraries from GitHub — that I’ll go into in other posts, along with a demonstration of the perils of trust that I hope doesn’t get Hadley too upset (you’ll see why in said future post ?).

Also note that there is no place on said hierarchy for the random USB stick of cool/useful R code. #justdontdoit

Watering Holes

The places where folks come together to collaborate have a colloquial security name: a “watering hole”. Attackers use these known places to perform — you guessed it — “watering hole” attacks. They figure out where you go, who/what you trust and use that to do bad things. I personally don’t know of any current source-code attacks, but data scientists are being targeted in other ways by attackers. If attackers sense there is a source code soft-spot it will only be a matter of time before they begin to use that vector for attack. The next section mentions one possible attacker that you’re likely not thinking of as an “attacker”.

This isn’t FUD.

Governments, competitors and criminals know that the keys to the 21st century economy (for a while, anyway) reside in data and with those who can gather, analyze and derive insight from data. Not all of us have to worry about this, but many of us do and you should not dismiss the value of the work you’re doing, especially if you’re not performing open research. Imagine if a tiny bit of data exfiltration code managed to get on your Spark cluster or even your own laptop. This can easily happen with a tampered package (remember the incident a few years ago with usage tracking code in R scripts?).

A Bit More On https

I glossed over the https bit above, but by downloading a package over SSL/TLS you’re ensuring that the bits of code aren’t modified in transit from the server to your system and what you’re downloading is also not shown to prying eyes. That’s important since you really want to be sure you’re getting what you think your getting (i.e. no bits are changed) and you may be working in areas your oppressive, authoritarian government doesn’t approve of, such as protecting the environment or tracking global climate change (?).

The use of https also does show — at least in a limited sense — that the maintainers of the server knew enough to actually setup SSL/TLS and thought — at least for a minute or two — about security. The crazy move to “Let’s Encrypt” everything is a topic for another, non-R post, but you can use that service to get free certificates for your own sites with a pretty easy installation mechanism.

I re-mention SSL/TLS as a segue back to the original topic…

Back to the topic at hand

So, what’s so bad about:

source('http://callr.org/install#knitr')

On preview: nothing. Henrik’s a good dude and you can ostensibly see what that script is doing.

On review: much.

I won’t go into a great deal of detail, but that server is running a RHEL 5 server with 15 internet services enabled, ranging from FTP to mail to web serving along with two database servers (both older versions) directly exposed to the internet. The default serving mode is http and the SSL certificate it does have is not trusted by any common certificate store.

None of that was found by any super-elite security mechanism.

Point your various clients at those services on that system and you’ll get a response. To put it bluntly, that system is 100% vulnerable to attack. (How to setup a defensible system is a topic for another post.).

In other words, if said mechanism becomes a popular “watering hole” for easy installation of R packages, it’s also a pretty easy target for attackers to take surreptitious control of and then inject whatever they want, along with keeping track of what’s being installed, by whom and from which internet locale.

Plain base::source() does nothing on your end to validate the integrity of that script. It’s like using devtools::source() or devtools::source_gist() without the sha1 parameter (which uses a hash to validate the integrity of what you’re sourcing). Plus, it seems you cannot do:

devtools::source_url('http://callr.org/install#knitr', sha1="2c1c7fe56ea5b5127f0e709db9169691cc50544a")

since the httr call that lies beneath appears to be stripping away the #… bits. So, there’s no way to run this remotely with any level of integrity or confidentiality.

TLDR

If you like this script (it’s pretty handy) put it in a local directory and source it from there.

Fin

I can’t promise a frequency for “security in the data science community” posts but will endeavor to crank out a few more before summer. Note also that R is not the only ecosystem with these issues, so Python, Julia, node.js and other communities should not get smug :-)

Our pursuit of open, collaborative work has left us vulnerable to bad intentioned ne’er-do-wells and it’s important to at least be aware of the vulnerabilities in our processes, workflows and practices. I’m not saying you have to be wary of every devtools::instal_github() that you do, but you are now armed with information that might help you think twice about how often you trust calls to do such things.

In the meantime, download @henrikbengtsson’s script, thank him for making a very useful tool and run it locally (provided you’re cool with potentially installing things from non-CRAN repos :-)

Google recently [announced](https://developers.google.com/speed/public-dns/docs/dns-over-https) their DNS-over-HTTPS API, which _”enhances privacy and security between a client and a recursive resolver, and complements DNSSEC to provide end-to-end authenticated DNS lookups”_. The REST API they provided was pretty simple to [wrap into a package](https://github.com/hrbrmstr/gdns) and I tossed in some [SPF](http://www.openspf.org/SPF_Record_Syntax) functions that I had lying around to bulk it up a bit.

### Why DNS-over-HTTPS?

DNS machinations usually happen over UDP (and sometimes TCP). Unless you’re using some fairly modern DNS augmentations, these exchanges happen in cleartext, meaning your query and the response are exposed during transport (and they are already exposed to the server you’re querying for a response).

DNS queries over HTTPS will be harder to [spoof](http://www.veracode.com/security/spoofing-attack) and the query + response will be encrypted, so you gain transport privacy when, say, you’re at Starbucks or from your DSL, FiOS, Gogo Inflight, or cable internet provider (yes, they all snoop on your DNS queries).

You end up trusting Google quite a bit with this API, but if you were currently using `8.8.8.8` or `8.8.4.4` (or their IPv6 equivalents) you were already trusting Google (and it’s likely Google knows what you’re doing on the internet anyway given all the trackers and especially if you’re using Chrome).

One additional item you gain using this API is more control over [`EDNS0`](https://tools.ietf.org/html/draft-vandergaast-edns-client-ip-00) settings. `EDNS0` is a DNS protocol extension that, for example, enables the content delivery networks to pick the “closest” server farm to ensure speedy delivery of your streaming Game of Thrones binge watch. They get to know a piece of your IP address so they can make this decision, but you end up giving away a bit of privacy (though you lose the privacy in the end since the target CDN servers know precisely where you are).

Right now, there’s no way for most clients to use DNS-over-HTTPS directly, but the API can be used in a programmatic fashion, which may be helpful in situations where you need to do some DNS spelunking but UDP is blocked or you’re on a platform that can’t build the [`resolv`](https://github.com/hrbrmstr/resolv) package.

You can learn a bit more about DNS and privacy in this [IETF paper](https://www.ietf.org/mail-archive/web/dns-privacy/current/pdfWqAIUmEl47.pdf) [PDF].

### Mining DNS with `gdns`

The `gdns` package is pretty straightforward. Use the `query()` function to get DNS info for a single entity:

library(gdns)

query("apple.com")
## $Status
## [1] 0          # NOERROR - Standard DNS response code (32 bit integer)
##
## $TC
## [1] FALSE      # Whether the response is truncated
##
## $RD
## [1] TRUE       # Should always be true for Google Public DNS
##
## $RA
## [1] TRUE       # Should always be true for Google Public DNS
##
## $AD
## [1] FALSE      # Whether all response data was validated with DNSSEC
##
## $CD
## [1] FALSE      # Whether the client asked to disable DNSSEC
##
## $Question
##         name type
## 1 apple.com.    1
##
## $Answer
##         name type  TTL          data
## 1 apple.com.    1 1547 17.172.224.47
## 2 apple.com.    1 1547  17.178.96.59
## 3 apple.com.    1 1547 17.142.160.59
##
## $Additional
## list()
##
## $edns_client_subnet
## [1] "0.0.0.0/0"

The `gdns` lookup functions are set to use an `edns_client_subnet` of `0.0.0.0/0`, meaning your local IP address or subnet is not leaked outside of your connection to Google (you can override this behavior).

You can do reverse lookups as well (i.e. query IP addresses):

query("17.172.224.47", "PTR")
## $Status
## [1] 0
##
## $TC
## [1] FALSE
##
## $RD
## [1] TRUE
##
## $RA
## [1] TRUE
##
## $AD
## [1] FALSE
##
## $CD
## [1] FALSE
##
## $Question
##                          name type
## 1 47.224.172.17.in-addr.arpa.   12
##
## $Answer
##                            name type  TTL                           data
## 1   47.224.172.17.in-addr.arpa.   12 1073               webobjects.info.
## 2   47.224.172.17.in-addr.arpa.   12 1073                   yessql.info.
## 3   47.224.172.17.in-addr.arpa.   12 1073                 apples-msk.ru.
## 4   47.224.172.17.in-addr.arpa.   12 1073                     icloud.se.
## 5   47.224.172.17.in-addr.arpa.   12 1073                     icloud.es.
## 6   47.224.172.17.in-addr.arpa.   12 1073                     icloud.om.
## 7   47.224.172.17.in-addr.arpa.   12 1073                   icloudo.com.
## 8   47.224.172.17.in-addr.arpa.   12 1073                     icloud.ch.
## 9   47.224.172.17.in-addr.arpa.   12 1073                     icloud.fr.
## 10  47.224.172.17.in-addr.arpa.   12 1073                   icloude.com.
## 11  47.224.172.17.in-addr.arpa.   12 1073          camelspaceeffect.com.
## 12  47.224.172.17.in-addr.arpa.   12 1073                 camelphat.com.
## 13  47.224.172.17.in-addr.arpa.   12 1073              alchemysynth.com.
## 14  47.224.172.17.in-addr.arpa.   12 1073                    openni.org.
## 15  47.224.172.17.in-addr.arpa.   12 1073                      swell.am.
## 16  47.224.172.17.in-addr.arpa.   12 1073                  appleweb.net.
## 17  47.224.172.17.in-addr.arpa.   12 1073       appleipodsettlement.com.
## 18  47.224.172.17.in-addr.arpa.   12 1073                    earpod.net.
## 19  47.224.172.17.in-addr.arpa.   12 1073                 yourapple.com.
## 20  47.224.172.17.in-addr.arpa.   12 1073                    xserve.net.
## 21  47.224.172.17.in-addr.arpa.   12 1073                    xserve.com.
## 22  47.224.172.17.in-addr.arpa.   12 1073            velocityengine.com.
## 23  47.224.172.17.in-addr.arpa.   12 1073           velocity-engine.com.
## 24  47.224.172.17.in-addr.arpa.   12 1073            universityarts.com.
## 25  47.224.172.17.in-addr.arpa.   12 1073            thinkdifferent.com.
## 26  47.224.172.17.in-addr.arpa.   12 1073               theatremode.com.
## 27  47.224.172.17.in-addr.arpa.   12 1073               theatermode.com.
## 28  47.224.172.17.in-addr.arpa.   12 1073           streamquicktime.net.
## 29  47.224.172.17.in-addr.arpa.   12 1073           streamquicktime.com.
## 30  47.224.172.17.in-addr.arpa.   12 1073                ripmixburn.com.
## 31  47.224.172.17.in-addr.arpa.   12 1073              rip-mix-burn.com.
## 32  47.224.172.17.in-addr.arpa.   12 1073        quicktimestreaming.net.
## 33  47.224.172.17.in-addr.arpa.   12 1073        quicktimestreaming.com.
## 34  47.224.172.17.in-addr.arpa.   12 1073                  quicktime.cc.
## 35  47.224.172.17.in-addr.arpa.   12 1073                      qttv.net.
## 36  47.224.172.17.in-addr.arpa.   12 1073                      qtml.com.
## 37  47.224.172.17.in-addr.arpa.   12 1073                     qt-tv.net.
## 38  47.224.172.17.in-addr.arpa.   12 1073          publishingsurvey.org.
## 39  47.224.172.17.in-addr.arpa.   12 1073          publishingsurvey.com.
## 40  47.224.172.17.in-addr.arpa.   12 1073        publishingresearch.org.
## 41  47.224.172.17.in-addr.arpa.   12 1073        publishingresearch.com.
## 42  47.224.172.17.in-addr.arpa.   12 1073         publishing-survey.org.
## 43  47.224.172.17.in-addr.arpa.   12 1073         publishing-survey.com.
## 44  47.224.172.17.in-addr.arpa.   12 1073       publishing-research.org.
## 45  47.224.172.17.in-addr.arpa.   12 1073       publishing-research.com.
## 46  47.224.172.17.in-addr.arpa.   12 1073                  powerbook.cc.
## 47  47.224.172.17.in-addr.arpa.   12 1073             playquicktime.net.
## 48  47.224.172.17.in-addr.arpa.   12 1073             playquicktime.com.
## 49  47.224.172.17.in-addr.arpa.   12 1073           nwk-apple.apple.com.
## 50  47.224.172.17.in-addr.arpa.   12 1073                   myapple.net.
## 51  47.224.172.17.in-addr.arpa.   12 1073                  macreach.net.
## 52  47.224.172.17.in-addr.arpa.   12 1073                  macreach.com.
## 53  47.224.172.17.in-addr.arpa.   12 1073                   macmate.com.
## 54  47.224.172.17.in-addr.arpa.   12 1073         macintoshsoftware.com.
## 55  47.224.172.17.in-addr.arpa.   12 1073                    machos.net.
## 56  47.224.172.17.in-addr.arpa.   12 1073                   mach-os.net.
## 57  47.224.172.17.in-addr.arpa.   12 1073                   mach-os.com.
## 58  47.224.172.17.in-addr.arpa.   12 1073                   ischool.com.
## 59  47.224.172.17.in-addr.arpa.   12 1073           insidemacintosh.com.
## 60  47.224.172.17.in-addr.arpa.   12 1073             imovietheater.com.
## 61  47.224.172.17.in-addr.arpa.   12 1073               imoviestage.com.
## 62  47.224.172.17.in-addr.arpa.   12 1073             imoviegallery.com.
## 63  47.224.172.17.in-addr.arpa.   12 1073               imacsources.com.
## 64  47.224.172.17.in-addr.arpa.   12 1073        imac-applecomputer.com.
## 65  47.224.172.17.in-addr.arpa.   12 1073                imac-apple.com.
## 66  47.224.172.17.in-addr.arpa.   12 1073                     ikids.com.
## 67  47.224.172.17.in-addr.arpa.   12 1073              ibookpartner.com.
## 68  47.224.172.17.in-addr.arpa.   12 1073                   geoport.com.
## 69  47.224.172.17.in-addr.arpa.   12 1073                   firewire.cl.
## 70  47.224.172.17.in-addr.arpa.   12 1073               expertapple.com.
## 71  47.224.172.17.in-addr.arpa.   12 1073              edu-research.org.
## 72  47.224.172.17.in-addr.arpa.   12 1073               dvdstudiopro.us.
## 73  47.224.172.17.in-addr.arpa.   12 1073              dvdstudiopro.org.
## 74  47.224.172.17.in-addr.arpa.   12 1073              dvdstudiopro.net.
## 75  47.224.172.17.in-addr.arpa.   12 1073             dvdstudiopro.info.
## 76  47.224.172.17.in-addr.arpa.   12 1073              dvdstudiopro.com.
## 77  47.224.172.17.in-addr.arpa.   12 1073              dvdstudiopro.biz.
## 78  47.224.172.17.in-addr.arpa.   12 1073          developercentral.com.
## 79  47.224.172.17.in-addr.arpa.   12 1073             desktopmovies.org.
## 80  47.224.172.17.in-addr.arpa.   12 1073             desktopmovies.net.
## 81  47.224.172.17.in-addr.arpa.   12 1073              desktopmovie.org.
## 82  47.224.172.17.in-addr.arpa.   12 1073              desktopmovie.net.
## 83  47.224.172.17.in-addr.arpa.   12 1073              desktopmovie.com.
## 84  47.224.172.17.in-addr.arpa.   12 1073          darwinsourcecode.com.
## 85  47.224.172.17.in-addr.arpa.   12 1073              darwinsource.org.
## 86  47.224.172.17.in-addr.arpa.   12 1073              darwinsource.com.
## 87  47.224.172.17.in-addr.arpa.   12 1073                darwincode.com.
## 88  47.224.172.17.in-addr.arpa.   12 1073                carbontest.com.
## 89  47.224.172.17.in-addr.arpa.   12 1073              carbondating.com.
## 90  47.224.172.17.in-addr.arpa.   12 1073                 carbonapi.com.
## 91  47.224.172.17.in-addr.arpa.   12 1073           braeburncapital.com.
## 92  47.224.172.17.in-addr.arpa.   12 1073                  applexpo.net.
## 93  47.224.172.17.in-addr.arpa.   12 1073                  applexpo.com.
## 94  47.224.172.17.in-addr.arpa.   12 1073                applereach.net.
## 95  47.224.172.17.in-addr.arpa.   12 1073                applereach.com.
## 96  47.224.172.17.in-addr.arpa.   12 1073            appleiservices.com.
## 97  47.224.172.17.in-addr.arpa.   12 1073     applefinalcutproworld.org.
## 98  47.224.172.17.in-addr.arpa.   12 1073     applefinalcutproworld.net.
## 99  47.224.172.17.in-addr.arpa.   12 1073     applefinalcutproworld.com.
## 100 47.224.172.17.in-addr.arpa.   12 1073            applefilmmaker.com.
## 101 47.224.172.17.in-addr.arpa.   12 1073             applefilmaker.com.
## 102 47.224.172.17.in-addr.arpa.   12 1073                appleenews.com.
## 103 47.224.172.17.in-addr.arpa.   12 1073               appledarwin.org.
## 104 47.224.172.17.in-addr.arpa.   12 1073               appledarwin.net.
## 105 47.224.172.17.in-addr.arpa.   12 1073               appledarwin.com.
## 106 47.224.172.17.in-addr.arpa.   12 1073         applecomputerimac.com.
## 107 47.224.172.17.in-addr.arpa.   12 1073        applecomputer-imac.com.
## 108 47.224.172.17.in-addr.arpa.   12 1073                  applecare.cc.
## 109 47.224.172.17.in-addr.arpa.   12 1073               applecarbon.com.
## 110 47.224.172.17.in-addr.arpa.   12 1073                 apple-inc.net.
## 111 47.224.172.17.in-addr.arpa.   12 1073               apple-enews.com.
## 112 47.224.172.17.in-addr.arpa.   12 1073              apple-darwin.org.
## 113 47.224.172.17.in-addr.arpa.   12 1073              apple-darwin.net.
## 114 47.224.172.17.in-addr.arpa.   12 1073              apple-darwin.com.
## 115 47.224.172.17.in-addr.arpa.   12 1073                  mobileme.com.
## 116 47.224.172.17.in-addr.arpa.   12 1073                ipa-iphone.net.
## 117 47.224.172.17.in-addr.arpa.   12 1073               jetfuelapps.com.
## 118 47.224.172.17.in-addr.arpa.   12 1073                jetfuelapp.com.
## 119 47.224.172.17.in-addr.arpa.   12 1073                   burstly.net.
## 120 47.224.172.17.in-addr.arpa.   12 1073             appmediagroup.com.
## 121 47.224.172.17.in-addr.arpa.   12 1073             airsupportapp.com.
## 122 47.224.172.17.in-addr.arpa.   12 1073            burstlyrewards.com.
## 123 47.224.172.17.in-addr.arpa.   12 1073        surveys-temp.apple.com.
## 124 47.224.172.17.in-addr.arpa.   12 1073               appleiphone.com.
## 125 47.224.172.17.in-addr.arpa.   12 1073                       asto.re.
## 126 47.224.172.17.in-addr.arpa.   12 1073                 itunesops.com.
## 127 47.224.172.17.in-addr.arpa.   12 1073                     apple.com.
## 128 47.224.172.17.in-addr.arpa.   12 1073     st11p01ww-apple.apple.com.
## 129 47.224.172.17.in-addr.arpa.   12 1073                      apple.by.
## 130 47.224.172.17.in-addr.arpa.   12 1073                 airtunes.info.
## 131 47.224.172.17.in-addr.arpa.   12 1073              applecentre.info.
## 132 47.224.172.17.in-addr.arpa.   12 1073         applecomputerinc.info.
## 133 47.224.172.17.in-addr.arpa.   12 1073                appleexpo.info.
## 134 47.224.172.17.in-addr.arpa.   12 1073             applemasters.info.
## 135 47.224.172.17.in-addr.arpa.   12 1073                 applepay.info.
## 136 47.224.172.17.in-addr.arpa.   12 1073 applepaymerchantsupplies.info.
## 137 47.224.172.17.in-addr.arpa.   12 1073         applepaysupplies.info.
## 138 47.224.172.17.in-addr.arpa.   12 1073              applescript.info.
## 139 47.224.172.17.in-addr.arpa.   12 1073               appleshare.info.
## 140 47.224.172.17.in-addr.arpa.   12 1073                   macosx.info.
## 141 47.224.172.17.in-addr.arpa.   12 1073                powerbook.info.
## 142 47.224.172.17.in-addr.arpa.   12 1073                 powermac.info.
## 143 47.224.172.17.in-addr.arpa.   12 1073            quicktimelive.info.
## 144 47.224.172.17.in-addr.arpa.   12 1073              quicktimetv.info.
## 145 47.224.172.17.in-addr.arpa.   12 1073                 sherlock.info.
## 146 47.224.172.17.in-addr.arpa.   12 1073            shopdifferent.info.
## 147 47.224.172.17.in-addr.arpa.   12 1073                 skyvines.info.
## 148 47.224.172.17.in-addr.arpa.   12 1073                     ubnw.info.
##
## $Additional
## list()
##
## $edns_client_subnet
## [1] "0.0.0.0/0"

And, you can go “easter egg” hunting:

cat(query("google-public-dns-a.google.com", "TXT")$Answer$data)
## "http://xkcd.com/1361/"

Note that Google DNS-over-HTTPS supports [all the RR types](http://www.iana.org/assignments/dns-parameters/dns-parameters.xhtml#dns-parameters-4).

If you have more than a few domains to lookup and are querying for the same RR record, you can use the `bulk_query()` function:

hosts <- c("rud.is", "dds.ec", "r-project.org", "rstudio.com", "apple.com")
bulk_query(hosts)
## Source: local data frame [7 x 4]
##
##             name  type   TTL            data
##            (chr) (int) (int)           (chr)
## 1        rud.is.     1  3599 104.236.112.222
## 2        dds.ec.     1   299   162.243.111.4
## 3 r-project.org.     1  3601   137.208.57.37
## 4   rstudio.com.     1  3599    45.79.156.36
## 5     apple.com.     1  1088   17.172.224.47
## 6     apple.com.     1  1088    17.178.96.59
## 7     apple.com.     1  1088   17.142.160.59

Note that this function only returns a `data_frame` (none of the status fields).

### More DNSpelunking with `gdns`

DNS records contain a treasure trove of data (at least for cybersecurity researchers). Say you have a list of base, primary domains for the Fortune 1000:

library(readr)
library(urltools)

URL <- "https://gist.githubusercontent.com/hrbrmstr/ae574201af3de035c684/raw/2d21bb4132b77b38f2992dfaab99649397f238e9/f1000.csv"
fil <- basename(URL)
if (!file.exists(fil)) download.file(URL, fil)

f1k <- read_csv(fil)

doms1k <- suffix_extract(domain(f1k$website))
doms1k <- paste(doms1k$domain, doms1k$suffix, sep=".")

head(doms1k)
## [1] "walmart.com"           "exxonmobil.com"
## [3] "chevron.com"           "berkshirehathaway.com"
## [5] "apple.com"             "gm.com"

We can get all the `TXT` records for them:

library(parallel)
library(doParallel) # parallel ops will make this go faster
library(foreach)
library(dplyr)
library(ggplot2)
library(grid)
library(hrbrmrkdn)

cl <- makePSOCKcluster(4)
registerDoParallel(cl)

f1k_l <- foreach(dom=doms1k) %dopar% gdns::bulk_query(dom, "TXT")
f1k <- bind_rows(f1k_l)

length(unique(f1k$name))
## [1] 858

df <- count(count(f1k, name), `Number of TXT records`=n)
df <- bind_rows(df, data_frame(`Number of TXT records`=0, n=142))

gg <- ggplot(df, aes(`Number of TXT records`, n))
gg <- gg + geom_bar(stat="identity", width=0.75)
gg <- gg + scale_x_continuous(expand=c(0,0), breaks=0:13)
gg <- gg + scale_y_continuous(expand=c(0,0))
gg <- gg + labs(y="# Orgs",
                title="TXT record count per Fortune 1000 Org")
gg <- gg + theme_hrbrmstr(grid="Y", axis="xy")
gg <- gg + theme(axis.title.x=element_text(margin=margin(t=-22)))
gg <- gg + theme(axis.title.y=element_text(angle=0, vjust=1,
                                           margin=margin(r=-49)))
gg <- gg + theme(plot.margin=margin(t=10, l=30, b=30, r=10))
gg <- gg + theme(plot.title=element_text(margin=margin(b=20)))
gg

Fullscreen_4_11_16__12_35_AM

We can see that 858 of the Fortune 1000 have `TXT` records and more than a few have between 2 and 5 of them. Why look at `TXT` records? Well, they can tell us things like who uses cloud e-mail services, such as Outlook365:

sort(f1k$name[which(grepl("(MS=|outlook)", spf_includes(f1k$data), ignore.case=TRUE))])
##   [1] "21cf.com."                  "77nrg.com."                 "abbott.com."                "acuitybrands.com."
##   [5] "adm.com."                   "adobe.com."                 "alaskaair.com."             "aleris.com."
##   [9] "allergan.com."              "altria.com."                "amark.com."                 "ameren.com."
##  [13] "americantower.com."         "ametek.com."                "amkor.com."                 "amphenol.com."
##  [17] "amwater.com."               "analog.com."                "anixter.com."               "apachecorp.com."
##  [21] "archrock.com."              "archrock.com."              "armstrong.com."             "aschulman.com."
##  [25] "assurant.com."              "autonation.com."            "autozone.com."              "axiall.com."
##  [29] "bd.com."                    "belk.com."                  "biglots.com."               "bio-rad.com."
##  [33] "biomet.com."                "bloominbrands.com."         "bms.com."                   "borgwarner.com."
##  [37] "boydgaming.com."            "brinks.com."                "brocade.com."               "brunswick.com."
##  [41] "cabotog.com."               "caleres.com."               "campbellsoupcompany.com."   "carefusion.com."
##  [45] "carlyle.com."               "cartech.com."               "cbrands.com."               "cbre.com."
##  [49] "chemtura.com."              "chipotle.com."              "chiquita.com."              "churchdwight.com."
##  [53] "cinemark.com."              "cintas.com."                "cmc.com."                   "cmsenergy.com."
##  [57] "cognizant.com."             "colfaxcorp.com."            "columbia.com."              "commscope.com."
##  [61] "con-way.com."               "convergys.com."             "couche-tard.com."           "crestwoodlp.com."
##  [65] "crowncastle.com."           "crowncork.com."             "csx.com."                   "cummins.com."
##  [69] "cunamutual.com."            "dana.com."                  "darlingii.com."             "deanfoods.com."
##  [73] "dentsplysirona.com."        "discoverfinancial.com."     "disney.com."                "donaldson.com."
##  [77] "drhorton.com."              "dupont.com."                "dyn-intl.com."              "dynegy.com."
##  [81] "ea.com."                    "eastman.com."               "ecolab.com."                "edgewell.com."
##  [85] "edwards.com."               "emc.com."                   "enablemidstream.com."       "energyfutureholdings.com."
##  [89] "energytransfer.com."        "eogresources.com."          "equinix.com."               "expeditors.com."
##  [93] "express.com."               "fastenal.com."              "ferrellgas.com."            "fisglobal.com."
##  [97] "flowserve.com."             "fmglobal.com."              "fnf.com."                   "g-iii.com."
## [101] "genpt.com."                 "ggp.com."                   "gilead.com."                "goodyear.com."
## [105] "grainger.com."              "graphicpkg.com."            "hanes.com."                 "hanover.com."
## [109] "harley-davidson.com."       "harsco.com."                "hasbro.com."                "hbfuller.com."
## [113] "hei.com."                   "hhgregg.com."               "hnicorp.com."               "homedepot.com."
## [117] "hpinc.com."                 "hubgroup.com."              "iac.com."                   "igt.com."
## [121] "iheartmedia.com."           "insperity.com."             "itt.com."                   "itw.com."
## [125] "jarden.com."                "jcpenney.com."              "jll.com."                   "joyglobal.com."
## [129] "juniper.net."               "kellyservices.com."         "kennametal.com."            "kiewit.com."
## [133] "kindermorgan.com."          "kindredhealthcare.com."     "kodak.com."                 "lamresearch.com."
## [137] "lansingtradegroup.com."     "lennar.com."                "levistrauss.com."           "lithia.com."
## [141] "manitowoc.com."             "manpowergroup.com."         "marathonoil.com."           "marathonpetroleum.com."
## [145] "mastec.com."                "mastercard.com."            "mattel.com."                "maximintegrated.com."
## [149] "mednax.com."                "mercuryinsurance.com."      "mgmresorts.com."            "micron.com."
## [153] "mohawkind.com."             "molsoncoors.com."           "mosaicco.com."              "motorolasolutions.com."
## [157] "mpgdriven.com."             "mscdirect.com."             "mtb.com."                   "murphyoilcorp.com."
## [161] "mutualofomaha.com."         "mwv.com."                   "navistar.com."              "nbty.com."
## [165] "newellrubbermaid.com."      "nexeosolutions.com."        "nike.com."                  "nobleenergyinc.com."
## [169] "o-i.com."                   "oge.com."                   "olin.com."                  "omnicomgroup.com."
## [173] "onsemi.com."                "owens-minor.com."           "paychex.com."               "peabodyenergy.com."
## [177] "pepboys.com."               "pmi.com."                   "pnkinc.com."                "polaris.com."
## [181] "polyone.com."               "postholdings.com."          "ppg.com."                   "prudential.com."
## [185] "qg.com."                    "quantaservices.com."        "quintiles.com."             "rcscapital.com."
## [189] "rexnord.com."               "roberthalf.com."            "rushenterprises.com."       "ryland.com."
## [193] "sandisk.com."               "sands.com."                 "scansource.com."            "sempra.com."
## [197] "sonoco.com."                "spiritaero.com."            "sprouts.com."               "stanleyblackanddecker.com."
## [201] "starwoodhotels.com."        "steelcase.com."             "stryker.com."               "sunedison.com."
## [205] "sunpower.com."              "supervalu.com."             "swifttrans.com."            "synnex.com."
## [209] "taylormorrison.com."        "techdata.com."              "tegna.com."                 "tempursealy.com."
## [213] "tetratech.com."             "theice.com."                "thermofisher.com."          "tjx.com."
## [217] "trueblue.com."              "ufpi.com."                  "ulta.com."                  "unfi.com."
## [221] "unifiedgrocers.com."        "universalcorp.com."         "vishay.com."                "visteon.com."
## [225] "vwr.com."                   "westarenergy.com."          "westernunion.com."          "westrock.com."
## [229] "wfscorp.com."               "whitewave.com."             "wpxenergy.com."             "wyndhamworldwide.com."
## [233] "xilinx.com."                "xpo.com."                   "yum.com."                   "zimmerbiomet.com."

That’s 236 of them outsourcing some part of e-mail services to Microsoft.

We can also see which ones have terrible mail configs (`+all` or `all` passing):

f1k[which(passes_all(f1k$data)),]$name
## [1] "wfscorp.com."      "dupont.com."       "group1auto.com."   "uhsinc.com."
## [5] "bigheartpet.com."  "pcconnection.com."

or are configured for Exchange federation services:

sort(f1k$name[which(grepl("==", f1k$data))])
## sort(f1k$name[which(grepl("==", f1k$data))])
##   [1] "21cf.com."                 "aarons.com."               "abbott.com."               "abbvie.com."
##   [5] "actavis.com."              "activisionblizzard.com."   "acuitybrands.com."         "adm.com."
##   [9] "adobe.com."                "adt.com."                  "advanceautoparts.com."     "aecom.com."
##  [13] "aetna.com."                "agilent.com."              "airproducts.com."          "alcoa.com."
##  [17] "aleris.com."               "allergan.com."             "alliancedata.com."         "amcnetworks.com."
##  [21] "amd.com."                  "americantower.com."        "amfam.com."                "amgen.com."
##  [25] "amtrustgroup.com."         "amtrustgroup.com."         "amtrustgroup.com."         "amtrustgroup.com."
##  [29] "anadarko.com."             "analog.com."               "apachecorp.com."           "applied.com."
##  [33] "aptar.com."                "aramark.com."              "aramark.com."              "arcb.com."
##  [37] "archcoal.com."             "armstrong.com."            "armstrong.com."            "arrow.com."
##  [41] "asburyauto.com."           "autonation.com."           "avnet.com."                "ball.com."
##  [45] "bankofamerica.com."        "baxter.com."               "bc.com."                   "bd.com."
##  [49] "bd.com."                   "bd.com."                   "belden.com."               "bemis.com."
##  [53] "bestbuy.com."              "biogen.com."               "biomet.com."               "bloominbrands.com."
##  [57] "bms.com."                  "boeing.com."               "bonton.com."               "borgwarner.com."
##  [61] "brinks.com."               "brocade.com."              "brunswick.com."            "c-a-m.com."
##  [65] "ca.com."                   "cabelas.com."              "cabotog.com."              "caleres.com."
##  [69] "caleres.com."              "caleres.com."              "calpine.com."              "capitalone.com."
##  [73] "cardinal.com."             "carlyle.com."              "carlyle.com."              "cartech.com."
##  [77] "cbre.com."                 "celgene.com."              "centene.com."              "centurylink.com."
##  [81] "cerner.com."               "cerner.com."               "cfindustries.com."         "ch2m.com."
##  [85] "chevron.com."              "chipotle.com."             "chiquita.com."             "chk.com."
##  [89] "chrobinson.com."           "chs.net."                  "chsinc.com."               "chubb.com."
##  [93] "ciena.com."                "cigna.com."                "cinemark.com."             "cit.com."
##  [97] "cmc.com."                  "cmegroup.com."             "coach.com."                "cognizant.com."
## [101] "cokecce.com."              "colfaxcorp.com."           "columbia.com."             "commscope.com."
## [105] "con-way.com."              "conagrafoods.com."         "conocophillips.com."       "coopertire.com."
## [109] "core-mark.com."            "crbard.com."               "crestwoodlp.com."          "crowncastle.com."
## [113] "crowncork.com."            "csx.com."                  "danaher.com."              "darden.com."
## [117] "darlingii.com."            "davita.com."               "davita.com."               "davita.com."
## [121] "dentsplysirona.com."       "diebold.com."              "diplomat.is."              "dish.com."
## [125] "disney.com."               "donaldson.com."            "dresser-rand.com."         "dstsystems.com."
## [129] "dupont.com."               "dupont.com."               "dyn-intl.com."             "dyn-intl.com."
## [133] "dynegy.com."               "ea.com."                   "ea.com."                   "eastman.com."
## [137] "ebay.com."                 "echostar.com."             "ecolab.com."               "edmc.edu."
## [141] "edwards.com."              "elcompanies.com."          "emc.com."                  "emerson.com."
## [145] "energyfutureholdings.com." "energytransfer.com."       "eogresources.com."         "equinix.com."
## [149] "essendant.com."            "esterline.com."            "evhc.net."                 "exelisinc.com."
## [153] "exeloncorp.com."           "express-scripts.com."      "express.com."              "express.com."
## [157] "exxonmobil.com."           "familydollar.com."         "fanniemae.com."            "fastenal.com."
## [161] "fbhs.com."                 "ferrellgas.com."           "firstenergycorp.com."      "firstsolar.com."
## [165] "fiserv.com."               "flowserve.com."            "fmc.com."                  "fmglobal.com."
## [169] "fnf.com."                  "freddiemac.com."           "ge.com."                   "genpt.com."
## [173] "genworth.com."             "ggp.com."                  "grace.com."                "grainger.com."
## [177] "graphicpkg.com."           "graybar.com."              "guess.com."                "hain.com."
## [181] "halliburton.com."          "hanes.com."                "hanes.com."                "harley-davidson.com."
## [185] "harman.com."               "harris.com."               "harsco.com."               "hasbro.com."
## [189] "hcahealthcare.com."        "hcc.com."                  "hei.com."                  "henryschein.com."
## [193] "hess.com."                 "hhgregg.com."              "hnicorp.com."              "hollyfrontier.com."
## [197] "hologic.com."              "honeywell.com."            "hospira.com."              "hp.com."
## [201] "hpinc.com."                "hrblock.com."              "iac.com."                  "igt.com."
## [205] "iheartmedia.com."          "imshealth.com."            "ingrammicro.com."          "intel.com."
## [209] "interpublic.com."          "intuit.com."               "ironmountain.com."         "jacobs.com."
## [213] "jarden.com."               "jcpenney.com."             "jll.com."                  "johndeere.com."
## [217] "johndeere.com."            "joyglobal.com."            "juniper.net."              "karauctionservices.com."
## [221] "kbhome.com."               "kemper.com."               "keurig.com."               "khov.com."
## [225] "kindredhealthcare.com."    "kkr.com."                  "kla-tencor.com."           "labcorp.com."
## [229] "labcorp.com."              "lamresearch.com."          "lamresearch.com."          "landolakesinc.com."
## [233] "lansingtradegroup.com."    "lear.com."                 "leggmason.com."            "leidos.com."
## [237] "level3.com."               "libertymutual.com."        "lilly.com."                "lithia.com."
## [241] "livenation.com."           "lkqcorp.com."              "loews.com."                "magellanhealth.com."
## [245] "manitowoc.com."            "marathonoil.com."          "marathonpetroleum.com."    "markelcorp.com."
## [249] "markwest.com."             "marriott.com."             "martinmarietta.com."       "masco.com."
## [253] "massmutual.com."           "mastec.com."               "mastercard.com."           "mattel.com."
## [257] "maximintegrated.com."      "mckesson.com."             "mercuryinsurance.com."     "meritor.com."
## [261] "metlife.com."              "mgmresorts.com."           "micron.com."               "microsoft.com."
## [265] "mohawkind.com."            "molsoncoors.com."          "monsanto.com."             "mosaicco.com."
## [269] "motorolasolutions.com."    "mscdirect.com."            "murphyoilcorp.com."        "nasdaqomx.com."
## [273] "navistar.com."             "nbty.com."                 "ncr.com."                  "netapp.com."
## [277] "newfield.com."             "newscorp.com."             "nike.com."                 "nov.com."
## [281] "nrgenergy.com."            "ntenergy.com."             "nucor.com."                "nustarenergy.com."
## [285] "o-i.com."                  "oaktreecapital.com."       "ocwen.com."                "omnicare.com."
## [289] "oneok.com."                "oneok.com."                "onsemi.com."               "outerwall.com."
## [293] "owens-minor.com."          "owens-minor.com."          "oxy.com."                  "packagingcorp.com."
## [297] "pall.com."                 "parexel.com."              "paychex.com."              "pcconnection.com."
## [301] "penskeautomotive.com."     "pepsico.com."              "pfizer.com."               "pg.com."
## [305] "polaris.com."              "polyone.com."              "pplweb.com."               "principal.com."
## [309] "protective.com."           "publix.com."               "qg.com."                   "questdiagnostics.com."
## [313] "quintiles.com."            "rcscapital.com."           "realogy.com."              "regmovies.com."
## [317] "rentacenter.com."          "republicservices.com."     "rexnord.com."              "reynoldsamerican.com."
## [321] "reynoldsamerican.com."     "rgare.com."                "roberthalf.com."           "rpc.net."
## [325] "rushenterprises.com."      "safeway.com."              "saic.com."                 "sandisk.com."
## [329] "scana.com."                "scansource.com."           "seaboardcorp.com."         "selective.com."
## [333] "selective.com."            "sempra.com."               "servicemaster.com."        "servicemaster.com."
## [337] "servicemaster.com."        "sjm.com."                  "sm-energy.com."            "spectraenergy.com."
## [341] "spiritaero.com."           "sprouts.com."              "spx.com."                  "staples.com."
## [345] "starbucks.com."            "starwoodhotels.com."       "statestreet.com."          "steelcase.com."
## [349] "steeldynamics.com."        "stericycle.com."           "stifel.com."               "stryker.com."
## [353] "sunedison.com."            "sungard.com."              "supervalu.com."            "symantec.com."
## [357] "symantec.com."             "synnex.com."               "synopsys.com."             "taylormorrison.com."
## [361] "tdsinc.com."               "teamhealth.com."           "techdata.com."             "teledyne.com."
## [365] "tempursealy.com."          "tenethealth.com."          "teradata.com."             "tetratech.com."
## [369] "textron.com."              "thermofisher.com."         "tiaa-cref.org."            "tiffany.com."
## [373] "timewarner.com."           "towerswatson.com."         "treehousefoods.com."       "tribunemedia.com."
## [377] "trimble.com."              "trinet.com."               "trueblue.com."             "ugicorp.com."
## [381] "uhsinc.com."               "ulta.com."                 "unifiedgrocers.com."       "unisys.com."
## [385] "unum.com."                 "usfoods.com."              "varian.com."               "verizon.com."
## [389] "vfc.com."                  "viacom.com."               "visa.com."                 "vishay.com."
## [393] "visteon.com."              "wabtec.com."               "walmart.com."              "wecenergygroup.com."
## [397] "wecenergygroup.com."       "west.com."                 "westarenergy.com."         "westlake.com."
## [401] "westrock.com."             "weyerhaeuser.com."         "wholefoodsmarket.com."     "williams.com."
## [405] "wm.com."                   "wnr.com."                  "wpxenergy.com."            "wyndhamworldwide.com."
## [409] "xerox.com."                "xpo.com."                  "yrcw.com."                 "yum.com."
## [413] "zoetis.com."

And, even go so far as to see what are the most popular third-party mail services:

incl <- suffix_extract(sort(unlist(spf_includes(f1k$data))))
incl <- data.frame(table(paste(incl$domain, incl$suffix, sep=".")), stringsAsFactors=FALSE)
incl <- head(arrange(incl, desc(Freq)), 20)
incl <- mutate(incl, Var1=factor(Var1, Var1))
incl <- rename(incl, Service=Var1, Count=Freq)

gg <- ggplot(incl, aes(Service, Count))
gg <- gg + geom_bar(stat="identity", width=0.75)
gg <- gg + scale_x_discrete(expand=c(0,0))
gg <- gg + scale_y_continuous(expand=c(0,0), limits=c(0, 250))
gg <- gg + coord_flip()
gg <- gg + labs(x=NULL, y=NULL,
                title="Most popular services used by the F1000",
                subtitle="As determined by SPF record configuration")
gg <- gg + theme_hrbrmstr(grid="X", axis="y")
gg <- gg + theme(plot.margin=margin(t=10, l=10, b=20, r=10))
gg

Fullscreen_4_11_16__1_10_AM

### Fin

There are more `TXT` records to play with than just SPF ones and many other hidden easter eggs. I need to add a few more functions into `gdns` before shipping it off to CRAN, so if you have any feature requests, now’s the time to file a [github issue](https://github.com/hrbrmstr/gdns/issues).

Gone are the days when one had a single computer plugged directly into a modem (cable, DSL or good ol’ Hayes). Even the days when there were just one or two computers connected via wires or invisible multi-gigahertz waves passing through the air are in the long gone by. Today (as you’ll see in the February 2016 [OUCH! newsletter](http://securingthehuman.sans.org/resources/newsletters/ouch/2016)), there are scads of devices of all kinds on your home network. How can you keep track of them all?

Some router & wireless access point vendors provide tools on their device “admin” pages to see what’s connected, but they are inconsistent at best (and usually pretty ugly & cumbersome to navigate to). Thankfully, app purveyors have jumped in to fill the gap. Here’s a list of free or “freemium” (basic features for free, advanced features cost extra) tools for mobile devices and Windows or OS X (if you’re running Linux at home, I’m assuming you’re familiar with the tools available for Linux).

### iOS

– Fing –
– iNet – Network Scanner –
– Network Analyzer Lite – wifi scanner, ping & net info –

### Android

– Fing – (google); (amazon)
– Pamn (google); (direct source)

### Windows

– Advanced IP Scanner
– Angry IP Scanner –
– Fing –
– MiTec Network Scanner –
– nmap –

### OS X

– Angry IP Scanner –
– Fing –
– IP Scanner –
– LanScan –
– nmap –

Some of these tools are easier to work with than others, but they all install pretty easily (though “Fing” and “nmap” work at the command-line on Windows & OS X, so if you’re not a “power user”, you may want to use other tools on those platforms). In most cases, it’s up to you to keep a copy of the output and perform your own “diffs”. One “pro” option for tools like “Fing” is the ability to have the tool store scan results “in the cloud” and perform this comparison for you.

Drop a note in the comments if you have other suggestions, but _vendors be warned_: I’ll be moderating all comments to help ensure no evil links or blatant product shilling makes it to reader eyeballs.


Apple made the @justgetflux folks remove their [iOS sideloaded app](https://justgetflux.com/sideload/) due to the use of private APIs (which are a violation of the Apple Developer agreement). The ZIP archive has been pulled from their site (and it really has, too).

This “sideloading”—i.e. installing directly to your device after compiling it from source—_was_ an interesting way to distribute the app. I visually scanned the source code before sideloading (I code for iOS in both Objective C and Swift) and there seemed to be nothing nefarious in it and it works _really_ well. HOWEVER, I’m 100% sure an Xcode project ZIP archive of f.lux is going to hit the torrent and file-sharing sites pretty quickly. But, I’m also 99% sure that folks who want to do Really Bad Things™ to and with your iOS devices will gladly add some code to that Xcode project and most folks won’t take the time (or do not have the knowledge/experience) to validate the veracity of the code before using it.

So, first I implore iOS users to _not_ grab this sideloaded project from torrent or file-sharing sites since you will be putting your devices at risk if you do so.

Since some folks (but not very many, I suspect, since it does involve real work) will no doubt leave my warning unheeded, *please* run:

shasum -a 256 f.lux-xcode-master.zip

from an Terminal or iTerm2 prompt. If you don’t get:

38f463ee5780a4f2b0160f9fa21dbe3c78c5d80d3c093e4ff553aaca230e2898

as a result *DO NOT SIDE LOAD THE APP*. It means the good/safe f.lux source code/project has been modified by someone since November 11th, 2015 and that you are putting your device (i.e. the confidentiality, integrity and availability of your private data) at risk by installing it. You can also post it to [this site](http://hash.online-convert.com/sha256-generator) (I verified that it produces the correct result).

And, please, do not jailbreak your devices. You take a relatively safe operating system and pretty much turn it into an Android (check out the [2015 DBIR](http://verizonenterprise.com/DBIR) for more info on iOS vs Android security based on real data vs hype) .

it's about the people…

it’s about the people… (click for clip)

Far too many interesting bits to spam on Twitter individually but each is worth getting the word out on:

tumblr_m0wabdueuR1qd78lno1_1280

– It’s [π Day](https://www.google.com/search?q=pi+day)*
– Unless you’re living in a hole, you probably know that [Google Reader is on a death march](http://www.bbc.co.uk/news/technology-21785378). I’m really liking self-hosting [Tiny Tiny RSS](https://www.google.com/url?sa=t&rct=j&q=&esrc=s&source=web&cd=1&cad=rja&ved=0CDEQFjAA&url=https%3A%2F%2Fgithub.com%2Fgothfox%2FTiny-Tiny-RSS&ei=YtlBUfOLJvLe4AOHtoDIAQ&usg=AFQjCNGwtEr8slx-i0vNzhQi4b4evRVXFA&bvm=bv.43287494,d.dmg) so far, and will follow up with a standalone blog post on it.
– @jayjacobs & I are speaking soon at both [SOURCE Boston](http://www.sourceconference.com/boston/) & [Secure360](http://secure360.org/). We hope to have time outside the talk to discuss security visualization & analysis with you, so go on and register!
– Speaking of datavis, [VizSec 2013](http://www.vizsec.org/) is on October 14th in Atlanta, GA this year and the aligned [VAST 2013 Challenge](http://vacommunity.org/VAST+Challenge+2013) (via @ieeevisweek) will have another infosec-themed mini-challenge. Watch that space, grab the data and start analyzing & visualizing!
– If you’re in or around Boston, it’d be great to meet you at @openvisconf on May 16-17.
– Majestic SEO has released a new data set for folks to play with: [a list of the top 100,000 websites broken down by the country in which they are hosted](http://blog.majesticseo.com/research/top-websites-by-country/). It requires a free reg to get the link, but no spam so far. (h/t @teamcymru)
– And, finally, @MarketplaceAPM aired a [good, accessible story](http://www.marketplace.org/topics/tech/who-pays-bill-cyber-war) on “Who pays the bill for a cyber war?”. I always encourage infosec industry folk to listen to shows like Marketplace to see how we sound to non-security folk and to glean ways we can communicate better with the people we are ultimately trying to help.

*Image via davincismurf
