Updated Apache Drill R JDBC Interface Package {sergeant.caffeinated} With {dbplyr} 2.x Compatibility

While the future of the Apache Drill ecosystem is somewhat in-play (MapR — a major sponsoring org for the project — is kinda dead), I still use it almost daily (on my local home office cluster) to avoid handing over any more money to Amazon than I/we already do. The latest (yet-to-be-released) v1.18.0 has some great improvements, including JSON resultset streaming for the REST API. Alas, tweaking {sergeant} (my REST API R package) to handle that is not on the TODO for the foreseeable future, so I’ve been using {sergeant.caffeinated} — https://github.com/hrbrmstr/sergeant-caffeinated — (a RJDBC wrapper for the Drill JDBC interface) for quite a while since it handles large resultsets quite nicely.

I broke out the RJDBC functionality from {sergeant} into this separate package since, despite the fact that it’s 2019/2020, many folks still have/had problems getting {rJava} to work (FWIW it’s a seamless install for me on Windows, Ubuntu, or macOS, even Apple Silicon macOS). The surgery to separate it was fairly hack-ish (one reason it’s not on CRAN) and it finally broke with the recent {dbplyr} 2.x release. I assumed fixing the caffeinated version was easier/quicker than the REST API version, so I dug in and am cautiously tossing it out for wider poking.

An All New Way To Use 💂☕️

Gone are the days of src_drill_jdbc(), but enter in the new term of more standardized {DBI} and {d[b]plyr} access to Apache Drill. To install this version you can do:

remotes::install_github("hrbrmstr/sergeant-caffeinated")

(more install options using safer and saner social coding sites coming soon).

Let’s load up the package(s) and perform some operations.

library(sergeant.caffeinated)

test_host <- Sys.getenv("DRILL_TEST_HOST", "localhost")

be_quiet()

(con <- dbConnect(drv = DrillJDBC(), sprintf("jdbc:drill:zk=%s", test_host)))
## <DrillJDBCConnection>

The DRILL_TEST_HOST environment variable contains the hostname or IP address of my/your Drill server, defaulting to localhost if none is found.

The be_quiet() function stops the Java engine from yelling at you with “illegal reflective access” warnings. If you see this in other rJava-powered packages it means code in some classes in some Java archive files are doing some sketchy old-school things that newer JVMs aren’t happy about. At some point, these warnings become full-on errors which will break many things. Unfortunately, Drill is still fairly tied to Java 8.x and has tons of introspecting code. The errors are ugly, so if you want to get rid of them, just call this function before doing anything with Drill. (You’ll also notice log4j errors are finally gone!)

Now that we have a Drill JDBC connection, we can do something with it. All the DBI-ish operations work, but it’s 2020 and {d[b]ply} is the bee’s knees, so we’ll just dive right in with that:

(db <- tbl(con, "cp.`employee.json`"))

## # Source:   table<cp.`employee.json`> [?? x 16]
## # Database: DrillJDBCConnection
##    employee_id full_name first_name last_name position_id position_title store_id
##          <dbl> <chr>     <chr>      <chr>           <dbl> <chr>             <dbl>
##  1           1 Sheri No… Sheri      Nowmer              1 President             0
##  2           2 Derrick … Derrick    Whelply             2 VP Country Ma…        0
##  3           4 Michael … Michael    Spence              2 VP Country Ma…        0
##  4           5 Maya Gut… Maya       Gutierrez           2 VP Country Ma…        0
##  5           6 Roberta … Roberta    Damstra             3 VP Informatio…        0
##  6           7 Rebecca … Rebecca    Kanagaki            4 VP Human Reso…        0
##  7           8 Kim Brun… Kim        Brunner            11 Store Manager         9
##  8           9 Brenda B… Brenda     Blumberg           11 Store Manager        21
##  9          10 Darren S… Darren     Stanz               5 VP Finance            0
## 10          11 Jonathan… Jonathan   Murraiin           11 Store Manager         1
## # … with more rows, and 9 more variables: department_id <dbl>, birth_date <chr>,
## #   hire_date <chr>, salary <dbl>, supervisor_id <dbl>, education_level <chr>,
## #   marital_status <chr>, gender <chr>, management_role <chr>

Basically, that’s it: it “just works”.

FIN

If you’ve been a user of {sergeant.caffeinated} and really need src_drill_jdbc() back, drop an issue on GH or a note in the comments, and be sure to file issues if I’ve missed anything as you kick the tyres.

{sergeant} 0.9.0 Is On Its Way to CRAN Mirrors!

Tis been a long time coming, but a minor change to default S3 parameters in tibbles finally caused a push of {sergeant} — the R package that lets you use the Apache Drill REST API via {DBI}, {dplyr}, or directly — to CRAN.

The CRAN automatic processing system approved the release just under 19 minutes from submission.

What’s in version 0.9.0 (or, better: “what’s changed since CRAN 0.6.0?”):

  • API retries! (#ty @jameslamb)
  • Spelling! (#ty @trinker)
  • No Java! (me)
  • 0-row result handling! (#ty @scottcame)
  • progress bars! (#ty @scottcame)
  • fix auth issue! (#ty @Ahine)
  • better docker UX! (#ty @davidski)
  • column order preservation (fixes #18)
  • new `drill_functions()
  • much better error messages
  • 64-bit integer support
  • CTAS from a tbl (#29)
  • switch to {tinytest}
  • DBI tests

Some of this has been in past blog announcements, but now they’re all together in CRAN.

FIN

Apache Drill 1.18.0 (if there is one, the company that bought MapR has abandoned Drill so the fate of Drill is somewhat up in the air) will have support for streaming resultset, which will make the REST API actually usable for large data returns, so that’s on the menu for {sergeant} 1.0.0.

Getting {sergeant.caffeinated} on CRAN is also on the TODO as it contains the separated out JDBC bits.

Many thanks, again, to all the contributors who made 0.9.0 possible. As usual, file issues and/or PRs wherever you’re most comfortable.

On the Road to 0.8.0 — Some Additional New Features Coming in the sergeant Package

It was probably not difficult to discern from my previous Drill-themed post that I’m fairly excited about the Apache Drill 1.15.0 release. I’ve rounded out most of the existing corners for it in preparation for a long-overdue CRAN update and have been concentrating on two helper features: configuring & launching Drill embedded Docker containers and auto-generation of Drill CTAS queries.

Drill Docker Goodness

Starting with version 1.14.0, Apache provides Drill Docker images for use in experimenting/testing/building-off-of. They run Drill in single node standalone mode so you’re not going to be running this in “production” (unless you have light or just personal workloads). Docker is a great way to get to know Drill if you haven’t already played with it since you don’t have do do much except run the Docker image.

I’ve simplified this even more thanks to @rgfitzjohn’s most excellent stevedore? package which adds a robust R wrapper to the Docker client without relying on any heavy external dependencies such as reticulate. The new drill_up() function will auto-fetch the latest Drill image and launch a container so you can have a running Drill instance with virtually no effort on your part.

Just running the vanilla image isn’t enough since your goal is likely to do more than work with the built-in cp data source. The default container launch scenario also doesn’t hook up any local filesystem paths to the container so you really can’t do much other than cp-oriented queries. Rather than make you do all the work of figuring out how to machinate Docker command line arguments and manually configure a workspace that points to a local filesystem area in the Drill web admin GUI the drill_up() function provides a data_dir argument (that defaults to the getwd() where you are in your R session) which will then auto-wire up that path into the container and create a dfs.d workspace which auto-points to it for you. Here’s a sample execution:

library(sergeant)
library(tidyverse)

dr <- drill_up(data_dir = "~/Data")
## Drill container started. Waiting for the service to become active (this may take up to 30s).
## Drill container ID: f02a11b50e1647e44c4e233799180da3e907c8aa27900f192b5fd72acfa67ec0

You can use dc$stop() to stop the container or use the printed container id to do it from the command line.

We’ll use this containerized Drill instance with the next feature but I need to thank @cboettig for the suggestion to make an auto-downloader-runner-thingy before doing that. (Thank you @cboettig!)

Taking the Tedium out of CTAS

@dseverski, an intrepid R, Drill & sergeant user noticed some new package behavior with Drill 1.15.0 that ended up spawning a new feature: automatic generation of Drill CTAS statements.

Prior to 1.14.0 sergeant had no way to accurately, precisely tell data types of the columns coming back since the REST API didn’t provide them (as noted in the previous Drill post). Now, it did rely on the JSON types to create the initial data frames but id also did something **kinda horribad*: it ran readr::type_convert() on the result sets ?. Said operation had the singular benefit of auto-converting CSV/CSVH/TSV/PSV/etc data to something sane without having to worry about writing lengthy CTAS queries (at the expense of potentially confusing everyone, though that didn’t seem to happen).

With 1.15.0, the readr::type_convert() crutch is gone, which results in less-than-helpful things like this when you have delimiter-separated values data:

# using the Drill container we just started above

write_csv(nycflights13::flights, "~/Data/flights.csvh")

con <- src_drill("localhost")

tbl(con, "dfs.d.`flights.csvh`") %>%
  glimpse()
## Observations: ??
## Variables: 19
## Database: DrillConnection
## $ year           <chr> "2013", "2013", "2013", "2013", "2013", "2013", "2013", "2013…
## $ month          <chr> "1", "1", "1", "1", "1", "1", "1", "1", "1", "1", "1", "1", "…
## $ day            <chr> "1", "1", "1", "1", "1", "1", "1", "1", "1", "1", "1", "1", "…
## $ dep_time       <chr> "517", "533", "542", "544", "554", "554", "555", "557", "557"…
## $ sched_dep_time <chr> "515", "529", "540", "545", "600", "558", "600", "600", "600"…
## $ dep_delay      <chr> "2", "4", "2", "-1", "-6", "-4", "-5", "-3", "-3", "-2", "-2"…
## $ arr_time       <chr> "830", "850", "923", "1004", "812", "740", "913", "709", "838…
## $ sched_arr_time <chr> "819", "830", "850", "1022", "837", "728", "854", "723", "846…
## $ arr_delay      <chr> "11", "20", "33", "-18", "-25", "12", "19", "-14", "-8", "8",…
## $ carrier        <chr> "UA", "UA", "AA", "B6", "DL", "UA", "B6", "EV", "B6", "AA", "…
## $ flight         <chr> "1545", "1714", "1141", "725", "461", "1696", "507", "5708", …
## $ tailnum        <chr> "N14228", "N24211", "N619AA", "N804JB", "N668DN", "N39463", "…
## $ origin         <chr> "EWR", "LGA", "JFK", "JFK", "LGA", "EWR", "EWR", "LGA", "JFK"…
## $ dest           <chr> "IAH", "IAH", "MIA", "BQN", "ATL", "ORD", "FLL", "IAD", "MCO"…
## $ air_time       <chr> "227", "227", "160", "183", "116", "150", "158", "53", "140",…
## $ distance       <chr> "1400", "1416", "1089", "1576", "762", "719", "1065", "229", …
## $ hour           <chr> "5", "5", "5", "5", "6", "5", "6", "6", "6", "6", "6", "6", "…
## $ minute         <chr> "15", "29", "40", "45", "0", "58", "0", "0", "0", "0", "0", "…
## $ time_hour      <chr> "2013-01-01T10:00:00Z", "2013-01-01T10:00:00Z", "2013-01-01T1…

So the package does what it finally should have been doing all along. But, as noted, that’s not great if you just wanted to quickly work with a directory of CSV files. In theory, you’re supposed to use Drill’s CREATE TABLE AS then do a bunch of CASTS and TO_s to get proper data types. But who has time for that?

David had a stellar idea, might sergeant be able to automagically create CTAS statements from a query?. Yes. Yes it just might be able to do that with the new ctas_profile() function.

Let’s pipe the previous tbl() into ctas_profile() and see what we get:

tbl(con, "dfs.d.`flights.csvh`") %>%
  ctas_profile() %>%
  cat()

-- ** Created by ctas_profile() in the R sergeant package, version 0.8.0 **

CREATE TABLE CHANGE____ME AS
SELECT
  CAST(`year` AS DOUBLE) AS `year`,
  CAST(`month` AS DOUBLE) AS `month`,
  CAST(`day` AS DOUBLE) AS `day`,
  CAST(`dep_time` AS DOUBLE) AS `dep_time`,
  CAST(`sched_dep_time` AS DOUBLE) AS `sched_dep_time`,
  CAST(`dep_delay` AS DOUBLE) AS `dep_delay`,
  CAST(`arr_time` AS DOUBLE) AS `arr_time`,
  CAST(`sched_arr_time` AS DOUBLE) AS `sched_arr_time`,
  CAST(`arr_delay` AS DOUBLE) AS `arr_delay`,
  CAST(`carrier` AS VARCHAR) AS `carrier`,
  CAST(`flight` AS DOUBLE) AS `flight`,
  CAST(`tailnum` AS VARCHAR) AS `tailnum`,
  CAST(`origin` AS VARCHAR) AS `origin`,
  CAST(`dest` AS VARCHAR) AS `dest`,
  CAST(`air_time` AS DOUBLE) AS `air_time`,
  CAST(`distance` AS DOUBLE) AS `distance`,
  CAST(`hour` AS DOUBLE) AS `hour`,
  CAST(`minute` AS DOUBLE) AS `minute`,
  TO_TIMESTAMP(`time_hour`, 'FORMATSTRING') AS `time_hour` -- *NOTE* You need to specify the format string. Sample character data is: [2013-01-01T10:00:00Z].
FROM (SELECT * FROM dfs.d.`flights.csvh`)


-- TIMESTAMP and/or DATE columns were detected.
Drill's date/time format string reference can be found at:
--
-- <http://joda-time.sourceforge.net/apidocs/org/joda/time/format/DateTimeFormat.html>

There’s a parameter for the new table name which will cause the CHANGE____ME to go away and when the function finds TIMESTAMP or DATE fields it knows to switch to their TO_ cousins and gives sample data with a reminder that you need to make a format string (I’ll eventually auto-generate them unless someone PRs it first). And, since nodoby but Java programmers remember Joda format strings (they’re different than what you’re used to) it provides a handy link to them if it detects the presence of those column types.

Now, we don’t need to actually create a new table (though converting a bunch of CSVs to Parquet is likely a good idea for performance reasons) to use that output. We can pass most of that new query right to tbl():

tbl(con, sql("
SELECT
  CAST(`year` AS DOUBLE) AS `year`,
  CAST(`month` AS DOUBLE) AS `month`,
  CAST(`day` AS DOUBLE) AS `day`,
  CAST(`dep_time` AS DOUBLE) AS `dep_time`,
  CAST(`sched_dep_time` AS DOUBLE) AS `sched_dep_time`,
  CAST(`dep_delay` AS DOUBLE) AS `dep_delay`,
  CAST(`arr_time` AS DOUBLE) AS `arr_time`,
  CAST(`sched_arr_time` AS DOUBLE) AS `sched_arr_time`,
  CAST(`arr_delay` AS DOUBLE) AS `arr_delay`,
  CAST(`carrier` AS VARCHAR) AS `carrier`,
  CAST(`flight` AS DOUBLE) AS `flight`,
  CAST(`tailnum` AS VARCHAR) AS `tailnum`,
  CAST(`origin` AS VARCHAR) AS `origin`,
  CAST(`dest` AS VARCHAR) AS `dest`,
  CAST(`air_time` AS DOUBLE) AS `air_time`,
  CAST(`distance` AS DOUBLE) AS `distance`,
  CAST(`hour` AS DOUBLE) AS `hour`,
  CAST(`minute` AS DOUBLE) AS `minute`,
  TO_TIMESTAMP(`time_hour`, 'yyyy-MM-dd''T''HH:mm:ssZ') AS `time_hour` -- [2013-01-01T10:00:00Z].
FROM (SELECT * FROM dfs.d.`flights.csvh`)
")) %>%
  glimpse()
## Observations: ??
## Variables: 19
## Database: DrillConnection
## $ year           <dbl> 2013, 2013, 2013, 2013, 2013, 2013, 2013, 2013, 2013, 2013, 2…
## $ month          <dbl> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1…
## $ day            <dbl> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1…
## $ dep_time       <dbl> 517, 533, 542, 544, 554, 554, 555, 557, 557, 558, 558, 558, 5…
## $ sched_dep_time <dbl> 515, 529, 540, 545, 600, 558, 600, 600, 600, 600, 600, 600, 6…
## $ dep_delay      <dbl> 2, 4, 2, -1, -6, -4, -5, -3, -3, -2, -2, -2, -2, -2, -1, 0, -…
## $ arr_time       <dbl> 830, 850, 923, 1004, 812, 740, 913, 709, 838, 753, 849, 853, …
## $ sched_arr_time <dbl> 819, 830, 850, 1022, 837, 728, 854, 723, 846, 745, 851, 856, …
## $ arr_delay      <dbl> 11, 20, 33, -18, -25, 12, 19, -14, -8, 8, -2, -3, 7, -14, 31,…
## $ carrier        <chr> "UA", "UA", "AA", "B6", "DL", "UA", "B6", "EV", "B6", "AA", "…
## $ flight         <dbl> 1545, 1714, 1141, 725, 461, 1696, 507, 5708, 79, 301, 49, 71,…
## $ tailnum        <chr> "N14228", "N24211", "N619AA", "N804JB", "N668DN", "N39463", "…
## $ origin         <chr> "EWR", "LGA", "JFK", "JFK", "LGA", "EWR", "EWR", "LGA", "JFK"…
## $ dest           <chr> "IAH", "IAH", "MIA", "BQN", "ATL", "ORD", "FLL", "IAD", "MCO"…
## $ air_time       <dbl> 227, 227, 160, 183, 116, 150, 158, 53, 140, 138, 149, 158, 34…
## $ distance       <dbl> 1400, 1416, 1089, 1576, 762, 719, 1065, 229, 944, 733, 1028, …
## $ hour           <dbl> 5, 5, 5, 5, 6, 5, 6, 6, 6, 6, 6, 6, 6, 6, 6, 5, 6, 6, 6, 6, 6…
## $ minute         <dbl> 15, 29, 40, 45, 0, 58, 0, 0, 0, 0, 0, 0, 0, 0, 0, 59, 0, 0, 0…
## $ time_hour      <dttm> 2013-01-01 10:00:00, 2013-01-01 10:00:00, 2013-01-01 10:00:0…

Ahhhh… Useful data types. (And, see what I mean about that daft format string? Also, WP is mangling the format string so add a comment if you need the actual string.)

FIN

As you can see questions, suggestions (and PRs!) are welcome and heeded on your social-coding platform of choice (though y’all still seem to be stuck on GH ?).

NOTE: I’ll be subbing out most install_github() links in READMEs and future blog posts for install_git() counterparts pointing to my sr.ht repos (as I co-locate/migrate them there).

You can play with the new 0.8.0 features via devtools::install_git("https://git.sr.ht/~hrbrmstr/sergeant", ref="0.8.0").

Apache Drill 1.15.0 + sergeant 0.8.0 = pcapng Support, Proper Column Types & Mounds of New Metadata

Apache Drill is an innovative distributed SQL engine designed to enable data exploration and analytics on non-relational datastores […] without having to create and manage schemas. […] It has a schema-free JSON document model similar to MongoDB and Elasticsearch; [a plethora of APIs, including] ANSI SQL, ODBC/JDBC, and HTTP[S] REST; [is] extremely user and developer friendly; [and, has a] pluggable architecture enables connectivity to multiple datastores.

To ring in the new year the Drill team knocked out a new 1.15.0 release with a cadre of new functionality including:

One super-helpful new feature of the REST API is that it now returns query results metadata along with the query results themselves. This means REST API endpoints finally know both column order and column type. This gave me cause to re-visit the sergeant package [GL|GH] and make some accommodations for some of these new features.

Ushering In A New Order

Drill REST API queries return a "columns" field and "metadata" field with the data itself. We can use that to force an order to the columns as well as mostly use proper types (vs JSON-parsed/guessed types). I say mostly since the package still uses jsonlite to parse the results and there’s no support for 64-bit integers in jsonlite (more on this later).

We’ll use the example from DRILL-6847 and use the example provided by Charles Givre in his Jira issue since it will let me demonstrate more of that “mostly” comment and show off another new feature:

library(sergeant) # 0.8.0 branch of sergeant on gitlab or github
library(tidyverse)

con <- src_drill("localhost")

x <- tbl(con, "cp.`employee.json`")

mutate(x, employee_id = as.integer64(employee_id)) %>%
  mutate(position_id = as.integer64(position_id)) %>%
  select(
    employee_id, full_name, first_name, last_name,
    position_id, position_title
  ) -> bigint_result

The above is (logically):

SELECT
  CAST (employee_id AS INT) AS employee_id,
  full_name,
  first_name,
  last_name,
  CAST (position_id AS BIGINT) AS position_id,
  position_title
FROM cp.`employee.json`

What do we get when we take a preview of the result?

bigint_result
## # Source:   lazy query [?? x 6]
## # Database: DrillConnection
##    employee_id full_name  first_name last_name position_id position_title
##          <dbl> <chr>      <chr>      <chr>           <dbl> <chr>
##  1           1 Sheri Now… Sheri      Nowmer              1 President
##  2           2 Derrick W… Derrick    Whelply             2 VP Country Man…
##  3           4 Michael S… Michael    Spence              2 VP Country Man…
##  4           5 Maya Guti… Maya       Gutierrez           2 VP Country Man…
##  5           6 Roberta D… Roberta    Damstra             3 VP Information…
##  6           7 Rebecca K… Rebecca    Kanagaki            4 VP Human Resou…
##  7           8 Kim Brunn… Kim        Brunner            11 Store Manager
##  8           9 Brenda Bl… Brenda     Blumberg           11 Store Manager
##  9          10 Darren St… Darren     Stanz               5 VP Finance
## 10          11 Jonathan … Jonathan   Murraiin           11 Store Manager
## # ... with more rows

Warning message:
One or more columns are of type BIGINT. The sergeant package currently uses jsonlite::fromJSON()
to process Drill REST API result sets. Since jsonlite does not support 64-bit integers BIGINT
columns are initially converted to numeric since that's how jsonlite::fromJSON() works. This is
problematic for many reasons, including trying to use 'dplyr' idioms with said converted
BIGINT-to-numeric columns. It is recommended that you 'CAST' BIGINT columns to 'VARCHAR' prior to
working with them from R/'dplyr'.

If you really need BIGINT/integer64 support, consider using the R ODBC interface to Apache Drill
with the MapR ODBC drivers.

This informational warning will only be shown once per R session and you can disable them from
appearing by setting the 'sergeant.bigint.warnonce' option to 'FALSE'
(i.e. options(sergeant.bigint.warnonce = FALSE)).

The first thing sergeant users will notice is proper column order (before it just returned the columns in the order they came back in the JSON rows[] structure). The second thing is that we didn’t get integer64s back. Instead, we got doubles plus an information warning about why and what you can do about it. Said warning only displays once per-session and can be silenced with the option sergeant.bigint.warnonce. i.e. just put:

options(sergeant.bigint.warnonce = FALSE)

in your script or ~/.Rprofile and you won’t hear from it again.

The as.integer64() we used is not from the bit64 package but an internal sergeant package function that knows how to translate said operation to, e.g. CAST( employee_id AS BIGINT ).

You can use the ODBC drivers to gain BIGINT support and there are plans for the 0.8.0 branch to eventually use rapidjsonr at the C++-level to provide direct in-package support for BIGINTs as well.

Better Error Messages

Drill query errors that the sergeant package bubbled up through its various interfaces have not been pretty or all that useful. This has changed with the 0.8.0 branch. Let’s take a look:

tbl(con, "cp.employees.json")
## # Source:   table<cp.employees.json> [?? x 4]
## # Database: DrillConnection

Warning message:
VALIDATION ERROR: From line 2, column 6 to line 2, column 24: Object 'cp.employees.json' not found

Original Query:

  1: SELECT *
  2: FROM `cp.employees.json`
  3: LIMIT 10

Query Profile Error Link:
http://localhost:8047/profiles/079fc8cf-19c6-4c78-95a9-0b949a3ecf4c

As you can see in the above output, you now get a highly-formatted return value with the original SQL query broken into lines (with line numbers) and a full link to the Drill query profile so you can dig in to the gnarly details of complex query issues. As you work with this and find edge cases I missed for messages, drop an issue on your social-coding site of choice.

SUPPORT ALL THE PCAPs!

Drill has had packet capture (PCAP) file support for a while now and 1.15.0 adds support for the more modern/rich pcapng format. To enable support for this you need to add "pcapng": {"type": "pcapng", "extensions": ["pcapng"] }, to the "formats" section of your storage plugins and also configure a workspace directory to use that as the default (the principle of which is covered here).

We’ll use one of the Wireshark example captures to demonstrate:

pcaps <- tbl(con, "dfs.caps.`*.pcapng`")

glimpse(pcaps)
## Observations: ??
## Variables: 25
## $ tcp_flags_ece_ecn_capable            <int> 0, 0, 0, 0, 0, 0, 0, 0, 0...
## $ tcp_flags_ece_congestion_experienced <int> 0, 0, 0, 0, 0, 0, 0, 0, 0...
## $ tcp_flags_psh                        <int> 0, 0, 0, 0, 0, 0, 0, 0, 0...
## $ type                                 <chr> "TCP", "TCP", "TCP", "TCP...
## $ tcp_flags_cwr                        <int> 0, 0, 0, 0, 0, 0, 0, 0, 0...
## $ dst_ip                               <chr> "74.125.28.139", "10.254....
## $ src_ip                               <chr> "10.254.157.208", "74.125...
## $ tcp_flags_fin                        <int> 1, 1, 0, 0, 0, 0, 0, 0, 0...
## $ tcp_flags_ece                        <int> 0, 0, 0, 0, 0, 0, 0, 0, 0...
## $ tcp_flags                            <int> 17, 17, 16, 16, 16, 0, 0,...
## $ tcp_flags_ack                        <int> 1, 1, 1, 1, 1, 0, 0, 0, 0...
## $ src_mac_address                      <chr> "00:05:9A:3C:7A:00", "00:...
## $ tcp_flags_syn                        <int> 0, 0, 0, 0, 0, 0, 0, 0, 0...
## $ tcp_flags_rst                        <int> 0, 0, 0, 0, 0, 0, 0, 0, 0...
## $ timestamp                            <dttm> 2015-04-14 07:19:25, 201...
## $ tcp_session                          <dbl> 8.353837e+17, 8.353837e+1...
## $ packet_data                          <chr> "\"3DU...<z...E..(J.@.......
## $ tcp_parsed_flags                     <chr> "ACK|FIN", "ACK|FIN", "AC...
## $ tcp_flags_ns                         <int> 0, 0, 0, 0, 0, 0, 0, 0, 0...
## $ src_port                             <int> 60268, 443, 60268, 58382,...
## $ packet_length                        <int> 54, 54, 54, 55, 66, 78, 7...
## $ tcp_flags_urg                        <int> 0, 0, 0, 0, 0, 0, 0, 0, 0...
## $ tcp_ack                              <int> 662445631, 1496589825, 66...
## $ dst_port                             <int> 443, 60268, 443, 29216, 5...
## $ dst_mac_address                      <chr> "00:11:22:33:44:55", "00:...

count(pcaps, src_ip, dst_ip, sort=TRUE)
## # Source:     lazy query [?? x 3]
## # Database:   DrillConnection
## # Groups:     src_ip
## # Ordered by: desc(n)
##    src_ip         dst_ip             n
##    <chr>          <chr>          <dbl>
##  1 10.254.157.208 10.254.158.25    298
##  2 10.254.158.25  10.254.157.208   204
##  3 174.137.42.81  10.254.157.208    76
##  4 10.254.157.208 10.254.158.8      54
##  5 10.254.158.8   10.254.157.208    49
##  6 74.125.28.102  10.254.157.208    49
##  7 10.254.157.208 74.125.28.102     44
##  8 10.254.157.208 174.137.42.81     41
##  9 54.84.98.25    10.254.157.208    25
## 10 157.55.56.168  10.254.157.208    25
## # ... with more rows

More work appears to be planned by the Drill team to enable digging into the packet (binary) contents.

Drill Metadata As Data

Drill has provided ways to lookup Drill operational information as actual tables but the Drill team has added support for even more metadata-as-data queries.

First up is finally having better access to filesystem information. Prior to 1.15.0 one could get file and path attributes as part of other queries, but now we can treat filesystems as actual data. Let’s list all the PCAPs in the above workspace:

tbl(con, "information_schema.`schemata`") %>%
  filter(SCHEMA_NAME == "dfs.caps") %>%
  print() %>%
  pull(SCHEMA_NAME) -> pcap_schema
## # Source:   lazy query [?? x 9]
## # Database: DrillConnection
##   CATALOG_NAME SCHEMA_NAME SCHEMA_OWNER TYPE  IS_MUTABLE
##   <chr>        <chr>       <chr>        <chr> <chr>
## 1 DRILL        dfs.caps    <owner>      file  NO

tbl(con, "information_schema.`files`") %>%
  filter(schema_name == pcap_schema) %>%
  glimpse()
## Observations: ??
## Variables: 13
## $ SCHEMA_NAME       <chr> "dfs.caps"
## $ ROOT_SCHEMA_NAME  <chr> "dfs"
## $ WORKSPACE_NAME    <chr> "caps"
## $ FILE_NAME         <chr> "dof-short-capture.pcapng"
## $ RELATIVE_PATH     <chr> "dof-short-capture.pcapng"
## $ IS_DIRECTORY      <lgl> FALSE
## $ IS_FILE           <lgl> TRUE
## $ LENGTH            <dbl> 634280
## $ OWNER             <chr> "hrbrmstr"
## $ GROUP             <chr> "staff"
## $ PERMISSION        <chr> "rw-r--r--"
## $ ACCESS_TIME       <dttm> 1969-12-31 19:00:00
## $ MODIFICATION_TIME <dttm> 2019-01-01 19:12:17

The Drill system options table now has full descriptions for the options and also provides a new table that knows about all of Drills functions and all your custom UDFs. drill_opts() and drill_functions() return a data frame of all this info and have an optional browse parameter which, if set to TRUE, will show a DT interactive data table for them. I find this especially handy when I forget something like regexp_like syntax (I use alot of back-ends and many are wildly different) and can now do this:

FIN

Keep on the lookout for the rapidjsonr/BIGINT integration and more new features of the sergeant package. NOTE: The better error messages have been ported over to the sergeant.caffeinated package (the RJDBC interface) and the other niceties will make their way into that package soon as well.

So, make sure you’re using the 0.8.0 GL / GH, kick the tyres, file issues where you’re most comfortable working.

May your queries all be optimized and results sets complete in the new year!

Driving Drill Dynamically with Docker and Updating Storage Configurations On-the-fly with sergeant

The sergeant? package has a minor update that adds REST API coverage for two “new” storage endpoints that make it possible to add, update and remove storage configurations on-the-fly without using the GUI or manually updating a config file.

This is an especially handy feature when paired with Drill’s new, official Docker container since that means we can:

  • fire up a clean Drill instance
  • modify the storage configuration (to, say, point to a local file system directory)
  • execute SQL ops
  • destroy the Drill instance

all from within R.

This is even more handy for those of us who prefer handling JSON data in Drill than in R directly or with sparklyr.

Quick Example

In a few weeks most of the following verbose-code-snippets will have a more diminutive and user-friendly interface within sergeant, but for now we’ll perform the above bulleted steps with some data that was used in a recent new package which was also generated by another recent new package. The zdnsr::zdns_exec() function ultimately generates a deeply nested JSON file that I really prefer working with in Drill before shunting it into R. Said file is stored, say, in the ~/drilldat directory.

Now, I have Drill running all the time on almost every system I use, but we’ll pretend I don’t for this example. I’ve run zdns_exec() and generated the JSON file and it’s in the aforementioned directory. Let’s fire up an instance and connect to it:

library(sergeant) # git[hu|la]b:hrbrmstr/sergeant
library(dplyr)

docker <- Sys.which("docker") # you do need docker. it's a big dependency, but worth it IMO

(system2(
  command = docker,
  args = c(
    "run", "-i",
    "--name", "drill-1.14.0",
    "-p", "8047:8047",
    "-v", paste0(c(path.expand("~/drilldat"), "/drilldat"), collapse=":"),
    "--detach",
    "-t", "drill/apache-drill:1.14.0",
    "/bin/bash"
  ),
  stdout = TRUE
) -> drill_container)
## [1] "d6bc79548fa073d3bfbd32528a12669d753e7a19a6258e1be310e1db378f0e0d"

The above snippet fires up a Drill Docker container (downloads it, too, if not already local) and wires up a virtual directory to it.

We should wait a couple seconds and make sure we can connect to it:

drill_connection() %>%
  drill_active()
## [1] TRUE

Now, we need to add a storage configuration so we can access our virtual directory. Rather than modify dfs we’ll add a drilldat plugin that will work with the local filesystem just like dfs does:

drill_connection() %>%
  drill_mod_storage(
    name = "drilldat",
    config = '
{
  "config" : {
    "connection" : "file:///",
    "enabled" : true,
    "formats" : null,
    "type" : "file",
    "workspaces" : {
      "root" : {
        "location" : "/drilldat",
        "writable" : true,
        "defaultInputFormat": null
      }
    }
  },
  "name" : "drilldat"
}
')
## $result
## [1] "success"

Now, we can perform all the Drill ops sergeant has to offer, including ones like this:

(db <- src_drill("localhost"))
## src:  DrillConnection
## tbls: cp.default, dfs.default, dfs.root, dfs.tmp, drilldat.default, drilldat.root,
##   INFORMATION_SCHEMA, sys

tbl(db, "drilldat.root.`/*.json`")
## # Source:   table [?? x 10]
## # Database: DrillConnection
##    data                                              name   error class status timestamp
##
##  1 "{\"authorities\":[{\"ttl\":180,\"type\":\"SOA\"… _dmar… NA    IN    NOERR… 2018-09-09 13:18:07
##  2 "{\"authorities\":[],\"protocol\":\"udp\",\"flag… _dmar… NA    IN    NXDOM… 2018-09-09 13:18:07
##  3 "{\"authorities\":[],\"protocol\":\"udp\",\"flag… _dmar… NA    IN    NXDOM… 2018-09-09 13:18:07
##  4 "{\"authorities\":[],\"protocol\":\"udp\",\"flag… _dmar… NA    IN    NXDOM… 2018-09-09 13:18:07
##  5 "{\"authorities\":[],\"protocol\":\"udp\",\"flag… _dmar… NA    IN    NXDOM… 2018-09-09 13:18:07
##  6 "{\"authorities\":[{\"ttl\":1799,\"type\":\"SOA\… _dmar… NA    IN    NOERR… 2018-09-09 13:18:07
##  7 "{\"authorities\":[],\"protocol\":\"udp\",\"flag… _dmar… NA    IN    NXDOM… 2018-09-09 13:18:07
##  8 "{\"authorities\":[],\"protocol\":\"udp\",\"flag… _dmar… NA    IN    NXDOM… 2018-09-09 13:18:07
##  9 "{\"authorities\":[],\"protocol\":\"udp\",\"flag… _dmar… NA    IN    NXDOM… 2018-09-09 13:18:07
## 10 "{\"authorities\":[],\"protocol\":\"udp\",\"flag… _dmar… NA    IN    NOERR… 2018-09-09 13:18:07
## # ... with more rows

(tbl(db, "(
SELECT
 b.answers.name AS question,
 b.answers.answer AS answer
FROM (
 SELECT
   FLATTEN(a.data.answers) AS answers
 FROM
   drilldat.root.`/*.json` a
 WHERE
   (a.status = 'NOERROR')
) b
)") %>%
 collect() -> dmarc_recs)
## # A tibble: 1,250 x 2
##    question             answer
##  *
##  1 _dmarc.washjeff.edu  v=DMARC1; p=none
##  2 _dmarc.barry.edu     v=DMARC1; p=none; rua=mailto:dmpost@barry.edu,mailto:7cc566d7@mxtoolbox.d…
##  3 _dmarc.yhc.edu       v=DMARC1; pct=100; p=none
##  4 _dmarc.aacc.edu      v=DMARC1;p=none; rua=mailto:DKIM_DMARC@aacc.edu;ruf=mailto:DKIM_DMARC@aac…
##  5 _dmarc.sagu.edu      v=DMARC1; p=none; rua=mailto:Office365contact@sagu.edu; ruf=mailto:Office…
##  6 _dmarc.colostate.edu v=DMARC1; p=none; pct=100; rua=mailto:re+anahykughvo@dmarc.postmarkapp.co…
##  7 _dmarc.wne.edu       v=DMARC1;p=quarantine;sp=none;fo=1;ri=86400;pct=50;rua=mailto:dmarcreply@…
##  8 _dmarc.csuglobal.edu v=DMARC1; p=none;
##  9 _dmarc.devry.edu     v=DMARC1; p=none; pct=100; rua=mailto:devry@rua.agari.com; ruf=mailto:dev…
## 10 _dmarc.sullivan.edu  v=DMARC1; p=none; rua=mailto:mcambron@sullivan.edu; ruf=mailto:mcambron@s…
## # ... with 1,240 more rows

Finally (when done), we can terminate the Drill container:

system2(
  command = "docker",
  args = c("rm", "-f", drill_container)
)

FIN

Those system2() calls are hard on the ? and a pain to type/remember, so they’ll be wrapped in some sergeant utility functions (I’m hesitant to add a reticulate dependency to sergeant which is necessary to use the docker package, hence the system call wrapper approach).

Check your favorite repository for more sergeant updates and file issues if you have suggestions for how you’d like this Docker API for Drill to be controlled.

In-brief: Using Bro connection logs with Apache Drill

If you’ve got a directory full of Bro NSM logs, it’s easy to work with them in Apache Drill since they’re just tab-separated values (TSV) files by default. The most tedious part is mapping the columns to proper types and hopefully this saves at least one person from typing it out manually:

SELECT
  TO_TIMESTAMP(CAST(columns[0] AS DOUBLE)) AS ts,
                    columns[1]             AS uid,
                    columns[2]             AS id_orig_h,
                    columns[3]             AS id_orig_p,
                    columns[4]             AS id_resp_h,
                    columns[5]             AS id_resp_p,
                    columns[6]             AS proto,
                    columns[7]             AS service,
              CAST( columns[8] AS DOUBLE)  AS duration,
              CAST( columns[9] AS INTEGER) AS orig_bytes,
              CAST(columns[10] AS INTEGER) AS resp_bytes,
                   columns[11]             AS conn_state,
                   columns[12]             AS local_orig,
                   columns[13]             AS local_resp,
              CAST(columns[14] AS INTEGER) AS missed_bytes,
                   columns[15]             AS history,
              CAST(columns[16] AS INTEGER) AS orig_packets,
              CAST(columns[17] AS INTEGER) AS orig_ip_bytes,
              CAST(columns[18] AS INTEGER) AS resp_pkts,
              CAST(columns[19] AS INTEGER) AS resp_ip_bytes,
                   columns[20]             AS tunnel_parents
FROM dfs.brologs.`/201808/*`

You can either store them all under a single workspace with a default input type or soft-link/rename them to end in .tsv (it’s unlikely you want to change all .log files to be read as TSV everywhere).

While you could just use the logs this way, consider using CTAS to move them to Parquet. The above will created typed columns and the queries will generally be much faster.

Updates to the sergeant (Apache Drill connector) Package & a look at Apache Drill 1.14.0 release

Apache Drill 1.14.0 was recently released, bringing with it many new features and a temporary incompatibility with the current rev of the MapR ODBC drivers. The Drill community expects new ODBC drivers to arrive shortly. The sergeant? is an alternative to ODBC for R users as it provides a dplyr interface to the REST API along with a JDBC interface and functions to work directly with the REST API in a more programmatic fashion.

First-class dplyr-citizen support for the sergeant JDBC interface

I’ve been primarily using the ODBC interface for a while, now, since it’s dead simple to use it with dplyr (as has been noted in my still-unfinished, short cookbook on wiring up Drill and R). The ODBC incompatibility is pretty severe since it’s at the protobuf-level, but sergeant::src_drill() is an easy swap out and does not have any issues since it works against the REST API. Unfortunately, the query endpoint of the REST API mangles the field order when it returns query results. This really isn’t too painful since it’s easy to add in a select() call after gathering query results to reorder things. However, it’s painful enough that it facilitated rounding out some of the corners to the JDBC interface.

sergeant::drill_jdbc() now returns a <DrillJDBCConnection> object which was necessary to add dplyr classes for just enough bits to enable smooth operation with the tbl() function (without breaking all your other RJDBC usage in the same session). The next blog section will use the new JDBC interface with dplyr as it introduces one of Drill’s new features.

Query Image Metadata with Apache Drill 1.14.0

There are quite a few R packages for reading image/media metadata. Since that seems to be en vogue, R folks might be interested in Drill’s new image metadata format plugin. Just point drill to a directory of files and you can use a familiar dplyr interface to get the deets on your pirated torrent archivefamily photo inventory.

You first need to follow the directions at the aforelinked resource and add the following format to the formats: section.

formats: {
     "image": {
       "type": "image",
       "extensions": [
         "jpg", "jpeg", "jpe", "tif", "tiff", "dng", "psd", "png", "bmp", "gif",
         "ico", "pcx", "wav", "wave", "avi", "webp", "mov", "mp4", "m4a", "m4p",
         "m4b", "m4r", "m4v", "3gp", "3g2", "eps", "epsf", "epsi", "ai", "arw",
         "crw", "cr2", "nef", "orf", "raf", "rw2", "rwl", "srw", "x3f"
       ],
       "fileSystemMetadata": true,
       "descriptive": true,
       "timeZone": null
     }
   }

Note that the configuration snippet on Drill’s site (as of the date-stamp on this post) did not have a , after the ] for the extensions array, so copy this one instead.

I created a media workspace and set the defaultInputFormat to image. Here’s a naive first look at what you can get back from a simple query to a jpg directory under it (using the new JDBC interface and dplyr):

library(sergeant)
library(tidyverse)

(con <- drill_jdbc("bigd:2181"))
##

tbl(con, "dfs.media.`/jpg/*`") %>%
  glimpse()
## Observations: ??
## Variables: 28
## $ FileSize         "4412686 bytes", "4737696 bytes", "4253912 byt...
## $ FileDateTime     "Thu Aug 16 03:04:16 -04:00 2018", "Thu Aug 16...
## $ Format           "JPEG", "JPEG", "JPEG", "JPEG", "JPEG", "JPEG"...
## $ PixelWidth       "4032", "4032", "4032", "4032", "4032", "4032"...
## $ PixelHeight      "3024", "3024", "3024", "3024", "3024", "3024"...
## $ BitsPerPixel     "24", "24", "24", "24", "24", "24", "24", "24"...
## $ DPIWidth         "72", "72", "72", "72", "72", "72", "72", "72"...
## $ DPIHeight        "72", "72", "72", "72", "72", "72", "72", "72"...
## $ Orientaion       "Unknown (0)", "Unknown (0)", "Unknown (0)", "...
## $ ColorMode        "RGB", "RGB", "RGB", "RGB", "RGB", "RGB", "RGB...
## $ HasAlpha         "false", "false", "false", "false", "false", "...
## $ Duration         "00:00:00", "00:00:00", "00:00:00", "00:00:00"...
## $ VideoCodec       "Unknown", "Unknown", "Unknown", "Unknown", "U...
## $ FrameRate        "0", "0", "0", "0", "0", "0", "0", "0", "0", "...
## $ AudioCodec       "Unknown", "Unknown", "Unknown", "Unknown", "U...
## $ AudioSampleSize  "0", "0", "0", "0", "0", "0", "0", "0", "0", "...
## $ AudioSampleRate  "0", "0", "0", "0", "0", "0", "0", "0", "0", "...
## $ JPEG             "{\"CompressionType\":\"Baseline\",\"DataPreci...
## $ JFIF             "{\"Version\":\"1.1\",\"ResolutionUnits\":\"no...
## $ ExifIFD0         "{\"Make\":\"Apple\",\"Model\":\"iPhone 7 Plus...
## $ ExifSubIFD       "{\"ExposureTime\":\"1/2227 sec\",\"FNumber\":...
## $ AppleMakernote   "{\"UnknownTag(0x0001)\":\"5\",\"UnknownTag(0x...
## $ GPS              "{\"GPSLatitudeRef\":\"N\",\"GPSLatitude\":\"4...
## $ XMP              "{\"XMPValueCount\":\"4\",\"Photoshop\":{\"Dat...
## $ Photoshop        "{\"CaptionDigest\":\"48 89 11 77 33 105 192 3...
## $ IPTC             "{\"CodedCharacterSet\":\"UTF-8\",\"Applicatio...
## $ Huffman          "{\"NumberOfTables\":\"4 Huffman tables\"}", "...
## $ FileType         "{\"DetectedFileTypeName\":\"JPEG\",\"Detected...

That’s quite a bit of metadata, but the Drill format plugin page kinda fibs a bit about column types since we see many chrs there. You may be quick to question the sergeant package but this isn’t using the REST interface and we can use DBI calls to ask Drill what’s it’s sending us:

dbSendQuery(con, "SELECT * FROM dfs.media.`/jpg/*`") %>%
  dbColumnInfo()
##         field.name        field.type data.type            name
## 1         FileSize CHARACTER VARYING character        FileSize
## 2     FileDateTime CHARACTER VARYING character    FileDateTime
## 3           Format CHARACTER VARYING character          Format
## 4       PixelWidth CHARACTER VARYING character      PixelWidth
## 5      PixelHeight CHARACTER VARYING character     PixelHeight
## 6     BitsPerPixel CHARACTER VARYING character    BitsPerPixel
## 7         DPIWidth CHARACTER VARYING character        DPIWidth
## 8        DPIHeight CHARACTER VARYING character       DPIHeight
## 9       Orientaion CHARACTER VARYING character      Orientaion
## 10       ColorMode CHARACTER VARYING character       ColorMode
## 11        HasAlpha CHARACTER VARYING character        HasAlpha
## 12        Duration CHARACTER VARYING character        Duration
## 13      VideoCodec CHARACTER VARYING character      VideoCodec
## 14       FrameRate CHARACTER VARYING character       FrameRate
## 15      AudioCodec CHARACTER VARYING character      AudioCodec
## 16 AudioSampleSize CHARACTER VARYING character AudioSampleSize
## 17 AudioSampleRate CHARACTER VARYING character AudioSampleRate
## 18            JPEG               MAP character            JPEG
## 19            JFIF               MAP character            JFIF
## 20        ExifIFD0               MAP character        ExifIFD0
## 21      ExifSubIFD               MAP character      ExifSubIFD
## 22  AppleMakernote               MAP character  AppleMakernote
## 23             GPS               MAP character             GPS
## 24             XMP               MAP character             XMP
## 25       Photoshop               MAP character       Photoshop
## 26            IPTC               MAP character            IPTC
## 27         Huffman               MAP character         Huffman
## 28        FileType               MAP character        FileType

We can still work with the results, but there’s also a pretty key element missing: the media filename. The reason it’s not in the listing is that filename is an implicit column that we have to ask for. So, we need to modify our query to be something like this:

tbl(con, sql("SELECT filename AS fname, * FROM dfs.media.`/jpg/*`")) %>%
  glimpse()
## Observations: ??
## Variables: 29
## $ fname            "IMG_0778.jpg", "IMG_0802.jpg", "IMG_0793.jpg"...
## $ FileSize         "4412686 bytes", "4737696 bytes", "4253912 byt...
## $ FileDateTime     "Thu Aug 16 03:04:16 -04:00 2018", "Thu Aug 16...
## $ Format           "JPEG", "JPEG", "JPEG", "JPEG", "JPEG", "JPEG"...
## $ PixelWidth       "4032", "4032", "4032", "4032", "4032", "4032"...
## $ PixelHeight      "3024", "3024", "3024", "3024", "3024", "3024"...
## $ BitsPerPixel     "24", "24", "24", "24", "24", "24", "24", "24"...
## $ DPIWidth         "72", "72", "72", "72", "72", "72", "72", "72"...
## $ DPIHeight        "72", "72", "72", "72", "72", "72", "72", "72"...
## $ Orientaion       "Unknown (0)", "Unknown (0)", "Unknown (0)", "...
## $ ColorMode        "RGB", "RGB", "RGB", "RGB", "RGB", "RGB", "RGB...
## $ HasAlpha         "false", "false", "false", "false", "false", "...
## $ Duration         "00:00:00", "00:00:00", "00:00:00", "00:00:00"...
## $ VideoCodec       "Unknown", "Unknown", "Unknown", "Unknown", "U...
## $ FrameRate        "0", "0", "0", "0", "0", "0", "0", "0", "0", "...
## $ AudioCodec       "Unknown", "Unknown", "Unknown", "Unknown", "U...
## $ AudioSampleSize  "0", "0", "0", "0", "0", "0", "0", "0", "0", "...
## $ AudioSampleRate  "0", "0", "0", "0", "0", "0", "0", "0", "0", "...
## $ JPEG             "{\"CompressionType\":\"Baseline\",\"DataPreci...
## $ JFIF             "{\"Version\":\"1.1\",\"ResolutionUnits\":\"no...
## $ ExifIFD0         "{\"Make\":\"Apple\",\"Model\":\"iPhone 7 Plus...
## $ ExifSubIFD       "{\"ExposureTime\":\"1/2227 sec\",\"FNumber\":...
## $ AppleMakernote   "{\"UnknownTag(0x0001)\":\"5\",\"UnknownTag(0x...
## $ GPS              "{\"GPSLatitudeRef\":\"N\",\"GPSLatitude\":\"4...
## $ XMP              "{\"XMPValueCount\":\"4\",\"Photoshop\":{\"Dat...
## $ Photoshop        "{\"CaptionDigest\":\"48 89 11 77 33 105 192 3...
## $ IPTC             "{\"CodedCharacterSet\":\"UTF-8\",\"Applicatio...
## $ Huffman          "{\"NumberOfTables\":\"4 Huffman tables\"}", "...
## $ FileType         "{\"DetectedFileTypeName\":\"JPEG\",\"Detected...

We could work with the “map” columns with Drill’s SQL, but this is just metadata and even if there are many files, most R folks have sufficient system memory these days to collect it all and work with it locally. There’s nothing stopping you from working on the SQL side, though, and it may be a better choice if you’ll be using this to process huge archives. But, we’ll do this in R and convert a bunch of field types along the way:

from_map <- function(x) { map(x, jsonlite::fromJSON)}

tbl(con, sql("SELECT filename AS fname, * FROM dfs.media.`/jpg/*`")) %>%
  collect() %>%
  mutate_at(
    .vars = vars(
      JPEG, JFIF, ExifSubIFD, AppleMakernote, GPS, XMP, Photoshop, IPTC, Huffman, FileType
    ),
    .funs=funs(from_map)
  ) %>%
  mutate_at(
    .vars = vars(
      PixelWidth, PixelHeight, DPIWidth, DPIHeight, FrameRate, AudioSampleSize, AudioSampleRate
    ),
    .funs=funs(as.numeric)
  ) %>%
  glimpse() -> media_df
## Observations: 11
## Variables: 29
## $ fname            "IMG_0778.jpg", "IMG_0802.jpg", "IMG_0793.jpg"...
## $ FileSize         "4412686 bytes", "4737696 bytes", "4253912 byt...
## $ FileDateTime     "Thu Aug 16 03:04:16 -04:00 2018", "Thu Aug 16...
## $ Format           "JPEG", "JPEG", "JPEG", "JPEG", "JPEG", "JPEG"...
## $ PixelWidth       4032, 4032, 4032, 4032, 4032, 4032, 3024, 4032...
## $ PixelHeight      3024, 3024, 3024, 3024, 3024, 3024, 4032, 3024...
## $ BitsPerPixel     "24", "24", "24", "24", "24", "24", "24", "24"...
## $ DPIWidth         72, 72, 72, 72, 72, 72, 72, 72, 72, 72, 72
## $ DPIHeight        72, 72, 72, 72, 72, 72, 72, 72, 72, 72, 72
## $ Orientaion       "Unknown (0)", "Unknown (0)", "Unknown (0)", "...
## $ ColorMode        "RGB", "RGB", "RGB", "RGB", "RGB", "RGB", "RGB...
## $ HasAlpha         "false", "false", "false", "false", "false", "...
## $ Duration         "00:00:00", "00:00:00", "00:00:00", "00:00:00"...
## $ VideoCodec       "Unknown", "Unknown", "Unknown", "Unknown", "U...
## $ FrameRate        0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0
## $ AudioCodec       "Unknown", "Unknown", "Unknown", "Unknown", "U...
## $ AudioSampleSize  0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0
## $ AudioSampleRate  0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0
## $ JPEG             [["Baseline", "8 bits", "3024 pixels", "4032 ...
## $ JFIF             [["1.1", "none", "72 dots", "72 dots", "0", "...
## $ ExifIFD0         "{\"Make\":\"Apple\",\"Model\":\"iPhone 7 Plus...
## $ ExifSubIFD       [["1/2227 sec", "f/1.8", "Program normal", "2...
## $ AppleMakernote   [["5", "[558 values]", "[104 values]", "1", "...
## $ GPS              [["N", "44° 19' 6.3\"", "W", "-68° 11' 22.39\...
## $ XMP              [["4", ["2017-06-22T14:28:04"], ["2017-06-22T...
## $ Photoshop        [["48 89 11 77 33 105 192 33 170 252 63 34 43...
## $ IPTC             [["UTF-8", "2", "14:28:04", "2017:06:22", "20...
## $ Huffman          [["4 Huffman tables"], ["4 Huffman tables"], ...
## $ FileType         [["JPEG", "Joint Photographic Experts Group",...

Now, we can do anything with the data, including getting the average file size:

mutate(media_df, FileSize = str_replace(FileSize, " bytes", "") %>% as.numeric()) %>%
  summarise(mean(FileSize))
## # A tibble: 1 x 1
##   `mean(FileSize)`
##
## 1         3878963.

FIN

The enhancements to the JDBC interface have only been given a light workout but seem to be doing well so-far. Kick the tyres and file an issue if you have any problems. ODBC users should not have to wait long for new drivers and src_drill() aficionados can keep chugging along as before without issue.

For those new to Apache Drill, there’s now an official Docker image for it so you can get up and running without adding too much cruft to your local systems. I may add support for spinning up and managing a Drill container to the sergeant package, so keep your eyes on pushes to the repo.

Also keep an eye on the mini-cookbook as I’ll be modifying to to account for the new package changes and introduce additional, new Drill features.

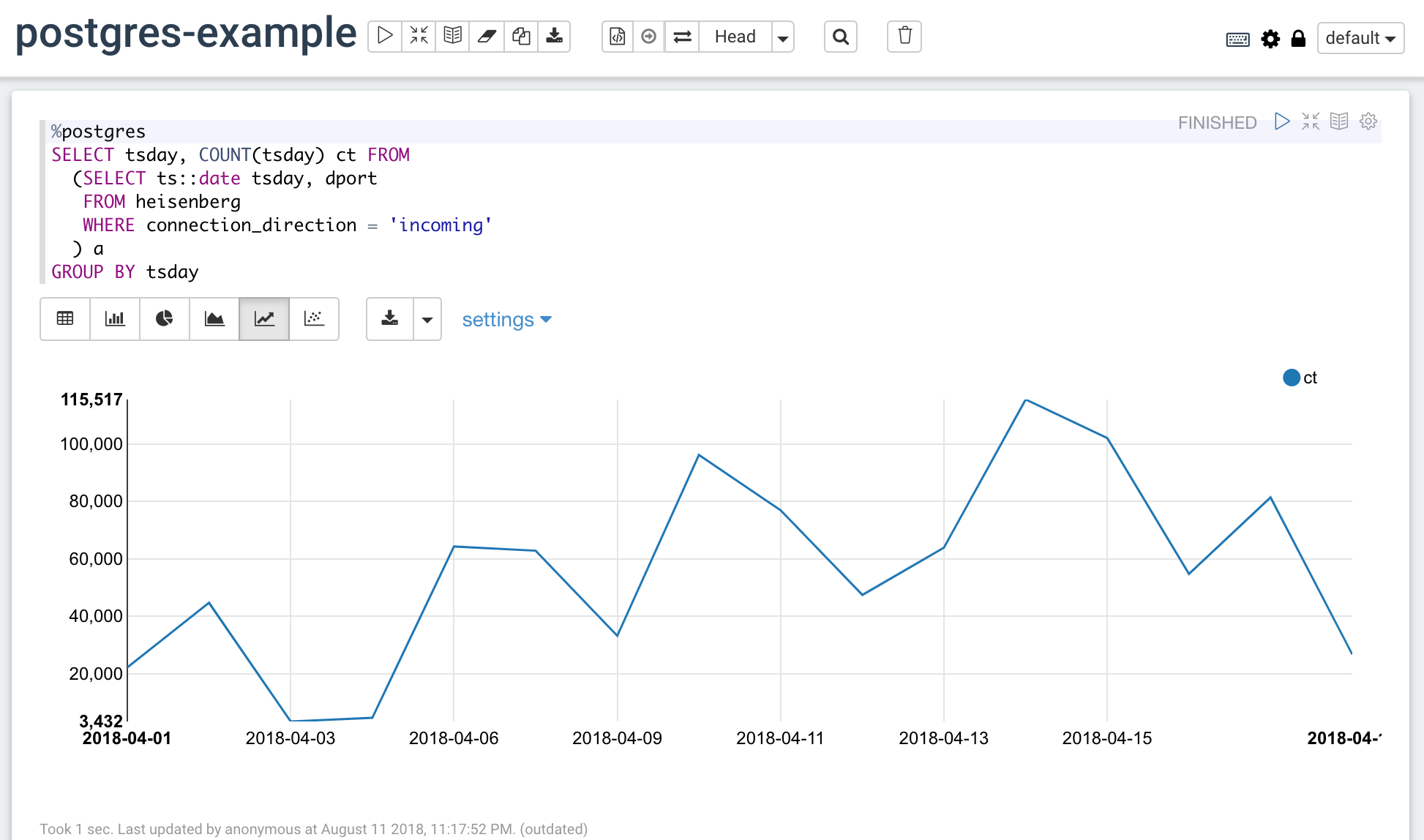

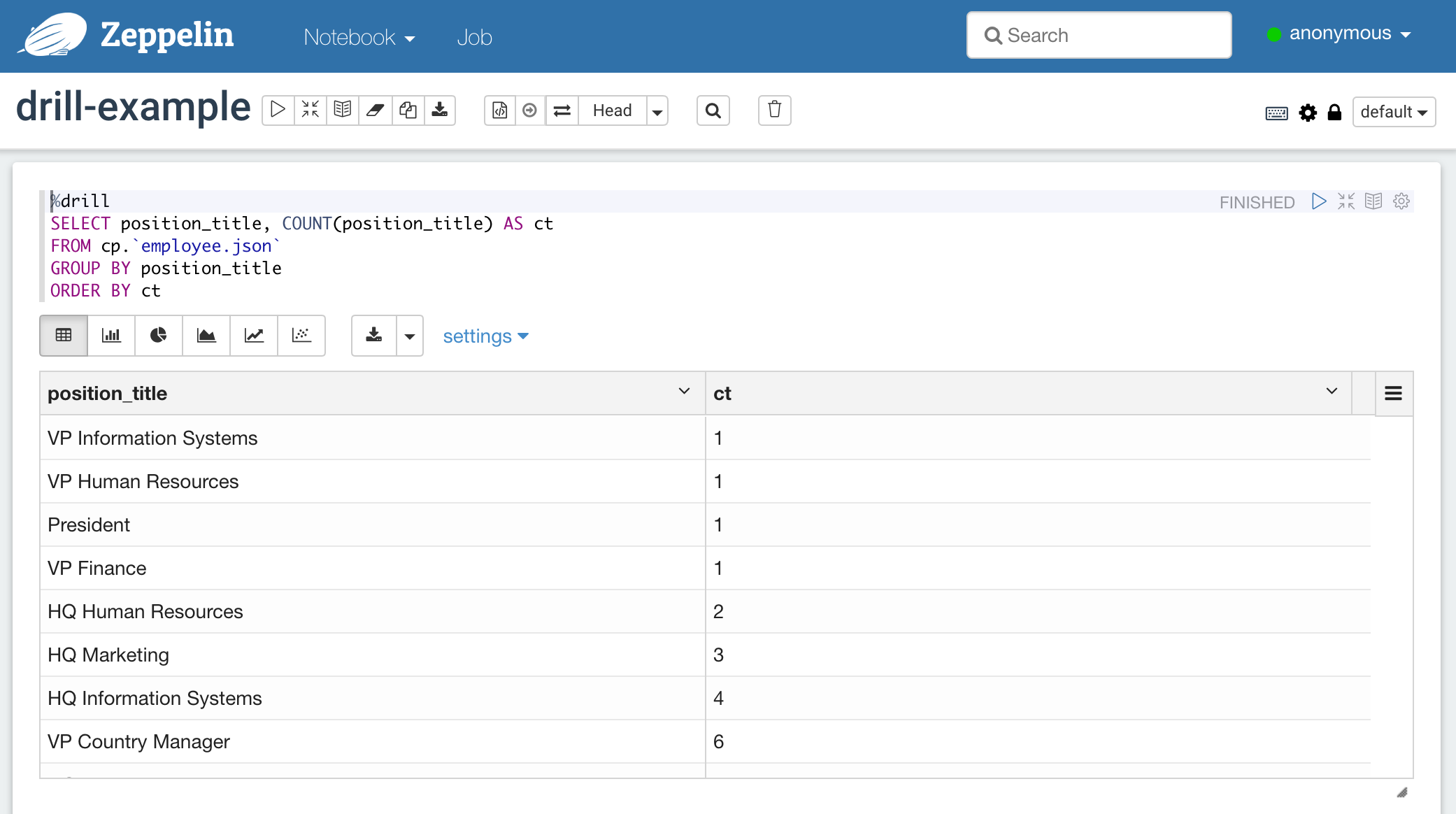

Connecting Apache Zeppelin and Apache Drill, PostgreSQL, etc.

A previous post showed how to use a different authentication provider to wire up Apache Zeppelin and Amazon Athena. As noted in that post, Zeppelin is a “notebook” alternative to Jupyter (and other) notebooks. Unlike Jupyter, I can tolerate Zeppelin and it’s got some nifty features like plug-and-play JDBC access. Plus it can do some nifty things automagically, like turn the output of a simple aggregation query into a visualization like the one shown at the top of the post.

Drill + Zeppelin (normally that’d be a deadly combination)

The steps to wire-up Apache Drill are similar to those for Athena:

  • Go to the Interpreter menu (it’s a drop down of the top right main Zeppelin menu bar)
  • Create a new one (I named mine — unimaginatively — drill)
  • Set the default.driver to org.apache.drill.jdbc.Driver
  • Fill in the necessary JDBC default.url. I use jdbc:drill:zk=localhost:2181 and you can have multiple ones if you have need to connect to more than one Drill cluster.
  • Setup authentication parameters if you need to
  • Under Dependencies, add an arifact and use the path JAR in $DRILL_HOME/jars/jdbc-driver/. In my case that’s /usr/local/drill/jars/jdbc-driver/drill-jdbc-all-1.14.0.jar

We can use one of Drill’s built-in datasets to test out our connection.

You can do the same thing in the Query box in the Drill web interface, but — even with the ACE editor now being embedded on the page — I think the Zeppelin interface is better and it’s possible to sequence a number of steps in the same notebook (i.e. use a %shell paragraph to grab some JSON data and copy it to a Drill-accessible folder then have a %drill paragraph right below it convert it to parquet and a %spark paragraph below that do some ML on the data and a %knitr block make a proper visualization with R).

Drill + PostgreSQL/etc.

By now, you’ve likely figured out it’s the same, heh, drill for other databases with JDBC support.

For PostgreSQL (i.e. a %postgres interpreter) you need to obtain the JDBC driver and wire its location up as an artifact; use org.postgresql.Driver for the default.driver; enter an appropriate default.url for your setup, which is more than likely jdbc:postgresql://localhost:5432/…if not (i.e. the Zeppelin node and PostgreSQL node are on different systems), then you’ll need to ensure PostgreSQL is configured to listen on an interface that is accessible to the Zeppelin node; enter authentication info and fire up a test query for data that you have. Something like:

FIN

Fear not! There shall be no more simple “wiring-up” posts unless a commenter asks for one or there’s some weird complexity with a new one that deserves some exposition, especially since there are plenty of examples over at the Zeppelin main site. Hopefully these posts have encouraged you do give Zeppelin a try if you haven’t already. I tried working with very early versions of Zeppelin a while back and left it sit for a while, so give it a chance if you did the same. Version 0.9.0 is about to come out and it’s looking even better than 0.8.0, plus it dropped in perfectly on Ubuntu and macOS (even 10.14 beta), too.

Drop a note in the comments if you have any tips/tricks for connecting to other JDBC sources.
