Connecting Apache Zeppelin and Apache Drill, PostgreSQL, etc.

A previous post showed how to use a different authentication provider to wire up Apache Zeppelin and Amazon Athena. As noted in that post, Zeppelin is a “notebook” alternative to Jupyter (and other) notebooks. Unlike Jupyter, I can tolerate Zeppelin and it’s got some nifty features like plug-and-play JDBC access. Plus it can do some nifty things automagically, like turn the output of a simple aggregation query into a visualization like the one shown at the top of the post.

Drill + Zeppelin (normally that’d be a deadly combination)

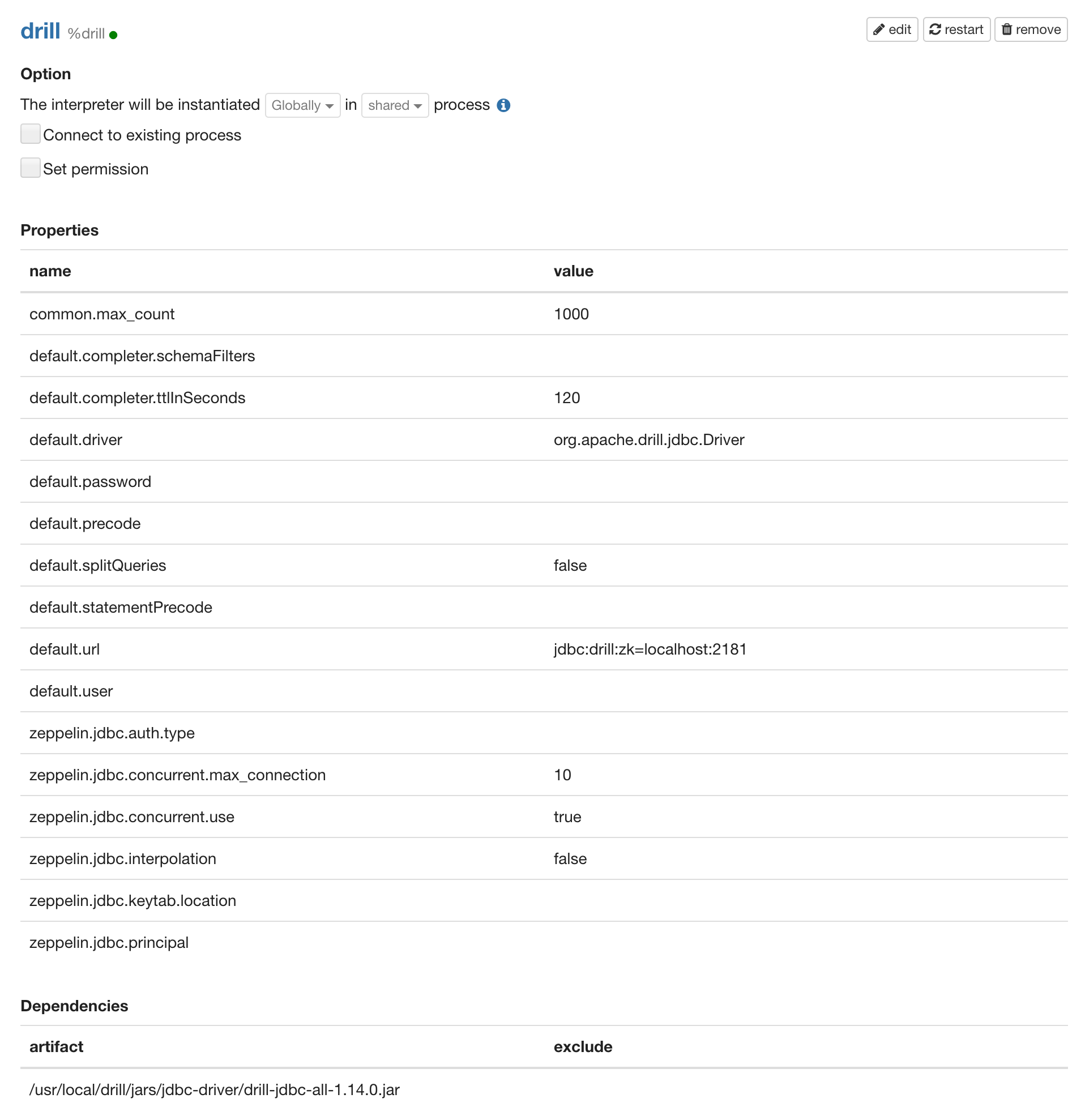

The steps to wire-up Apache Drill are similar to those for Athena:

  • Go to the Interpreter menu (it’s a drop down of the top right main Zeppelin menu bar)
  • Create a new one (I named mine — unimaginatively — drill)
  • Set the default.driver to org.apache.drill.jdbc.Driver
  • Fill in the necessary JDBC default.url. I use jdbc:drill:zk=localhost:2181 and you can have multiple ones if you have need to connect to more than one Drill cluster.
  • Setup authentication parameters if you need to
  • Under Dependencies, add an arifact and use the path JAR in $DRILL_HOME/jars/jdbc-driver/. In my case that’s /usr/local/drill/jars/jdbc-driver/drill-jdbc-all-1.14.0.jar

We can use one of Drill’s built-in datasets to test out our connection.

You can do the same thing in the Query box in the Drill web interface, but — even with the ACE editor now being embedded on the page — I think the Zeppelin interface is better and it’s possible to sequence a number of steps in the same notebook (i.e. use a %shell paragraph to grab some JSON data and copy it to a Drill-accessible folder then have a %drill paragraph right below it convert it to parquet and a %spark paragraph below that do some ML on the data and a %knitr block make a proper visualization with R).

Drill + PostgreSQL/etc.

By now, you’ve likely figured out it’s the same, heh, drill for other databases with JDBC support.

For PostgreSQL (i.e. a %postgres interpreter) you need to obtain the JDBC driver and wire its location up as an artifact; use org.postgresql.Driver for the default.driver; enter an appropriate default.url for your setup, which is more than likely jdbc:postgresql://localhost:5432/…if not (i.e. the Zeppelin node and PostgreSQL node are on different systems), then you’ll need to ensure PostgreSQL is configured to listen on an interface that is accessible to the Zeppelin node; enter authentication info and fire up a test query for data that you have. Something like:

FIN

Fear not! There shall be no more simple “wiring-up” posts unless a commenter asks for one or there’s some weird complexity with a new one that deserves some exposition, especially since there are plenty of examples over at the Zeppelin main site. Hopefully these posts have encouraged you do give Zeppelin a try if you haven’t already. I tried working with very early versions of Zeppelin a while back and left it sit for a while, so give it a chance if you did the same. Version 0.9.0 is about to come out and it’s looking even better than 0.8.0, plus it dropped in perfectly on Ubuntu and macOS (even 10.14 beta), too.

Drop a note in the comments if you have any tips/tricks for connecting to other JDBC sources.

Connecting Apache Zeppelin Up to Amazon Athena with an IAM Profile Name

Apache Zeppelin is a “notebook” alternative to Jupyter (and other) notebooks. It supports a plethora of kernels/interpreters and can do a ton of things that this post isn’t going to discuss (perhaps future ones will, especially since it’s the first “notebook” environment I’ve been able to tolerate for longer than a week).

One really cool feature of Zeppelin is the ability for it to wire it up to databases via JDBC and use it interactive queries. A future post will provide instructions for Apache Drill, but this one’s about wiring up Amazon Athena and Apache Zeppelin. A big reason to do this is that image at the top of the post. The query interface is far nicer than the Amazon console and — while RStudio is going to have similar features in the 1.2 release — Zeppelin has some advantages over it, especially as 0.9.0 moves to final release.

If you use basic credentials in Athena, this post can help you connect up.

At $DAYJOB we use an open source application that we developed — Awsaml? at $DAYJOB — which provides automagically rotated temporary AWS credentials every hour after a successful initial multi-factor authentication (you should think about doing this, too).

Because it uses a non default profile name we need to use a different authentication class when using the Athena JDBC interface.

To somewhat dup the aforelinked post, you’ll need to download the driver that matches your version of the JDK and the JDBC data standards.

I like to put JARs like this in /usr/local/jars (just remember where you put it).

Now, just create a Zeppelin interpreter named athena (or whatever you like). Set the default.driver to com.simba.athena.jdbc.Driver and the JDBC string to this horribly long entity:


jdbc:awsathena://athena.us-east-1.amazonaws.com:443;S3OutputLocation=s3://aws-athena-query-results-something-us-east-1;Schema=default;AwsCredentialsProviderClass=com.simba.athena.amazonaws.auth.profile.ProfileCredentialsProvider;AwsCredentialsProviderArguments="your-profile-name"

I intentionally left it un-wrapped so it’s easier to copy. Here are the individual parts (separating the bullets at the semicolons):

  • jdbc:awsathena://athena.us-east-1.amazonaws.com:443 (use what you need to here)
  • S3OutputLocation=s3://aws-athena-query-results-something-us-east-1 (wherever Athena can write to)
  • Schema=default (the schema you’ll use)
  • AwsCredentialsProviderClass=com.simba.athena.amazonaws.auth.profile.ProfileCredentialsProvider (this is the proper class to select a profile by name)
  • AwsCredentialsProviderArguments="your-profile-name" (this is the profile name you want to use)

NOTE: You can use other JDBC driver parameters as well. I just focused on the minimum ones to keep it simple.

Blank-out any username/password fields (which, in theory, won’t be referenced anyway) and then scroll down and add the JAR you’re using an artifact. In my case that’s /usr/local/jars/AthenaJDBC42_2.0.2.jar.

Now, you can use a stored profile and hopefully rotating creds to work with %athena interpreter blocks in Zeppelin.
